Product Number: G 4 KW 1 F black

G Type - Female 90° | #Contacts: 4 | 50 V |Cable: Black(PUR); 0.75 mm²; IEC

G Type - Female Angled | #Contacts: 4 | 50 V / 4 A |Cable: Black(PUR); 4x0.75 mm²; IEC

  • Availability:
    Global
  • Status:
    Active

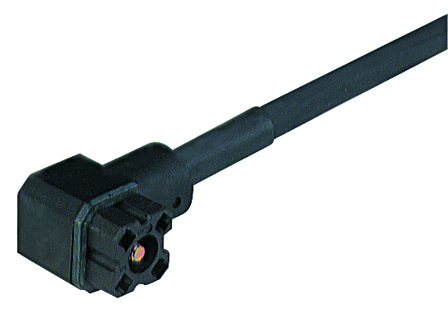

G 4 KW 1 F black
  • G 4 KW 1 F black
1 of 1

Specifications

Expand All

Face View

Pin 1 Pin 2 Pin 3 Pin 4
black red white yellow

Product Family

Industrial Connectors

Product Sub Family

G Series

Connector Type

Cordset, single ended

Type of Contact / Gender

Socket Contact / Female

Connector Design

Angled (90°) Body

Number of Pins

4

Shielding

Unshielded

Attachment Type

Central Screw

Rated Voltage

50 V

Rated Impulse Voltage

1.5 kV

Operating Voltage

50 V AC/DC

Rated Current*

10 A

Contact Resistance

≤ 10 mOhm

Mating Cycles

≤ 50

Type of Connection

Solder

Conductor Cross Section

0.75 mm²

Ambient Temperature (Operation)*

-40°C to +90°C

Protection Degree / IP Rating**

IP65

Design Standard

DIN EN 61984 (VDE 0627)

Pollution Degree

3 acc. to DIN EN 60664-1 (VDE 0110-1)

Clearance / Creepage Distance

DIN EN 60664-1 (2008/01); VDE 0110-1

Contact Base Material

Brass (CuZn)

Contact Plating

Copper-Tin Alloy (Cu/Sn)

Contact Bearer Material

PA GF

Contact Bearer Color

Black

Flammability Class (Contact Bearer)

UL 94 V-0

Molded Body Material

Polyvinyl Chloride (PVC)

Molded Body Color

Black

Flammability Class (Molded Body)

UL 94 V-0

Attachment Material

4.8 , Fe/Zn B

Gasket Material

Nitrile Butadiene Rubber (NBR)

Fastening Torque (Attachment)

M 3: (50-60) Ncm

Mating Connectors / Fitting to

G 4 E 1 M…, G 4 A 1 M…., G 4 A 5 M…

Accessories to Order Separately

Central Screw Stainless Steel: 732750003

Cable Number

PUR 4X0.75

Conductor Size

0.75 mm²

Number of Wires

4

Minimal Bending Radius (Fixed Inst)

˃ 5 x D

Minimal Bending Radius (Flexible Inst)

˃ 10 x D

Conductor material

Cu

Cable Jacket Material

Polyurethane (PUR)

Cable Jacket Color

Black

Cable Diameter D

ø 7.2 ±0.25 mm

Wire Insulation Material

Polyvinyl Chloride (PVC)

Ambient Temperature (Fixed Installation)

-40 °C to +70 °C

Ambient Temperature (Flex Installation)

+5 °C to +70 °C

VDE

VDE-Reg.-Nr.: 3113

RoHS Compliant

Compliant

Note Derating

Notice derating

Protection Degree / IP Rating Note

IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked

Note

Do not connect or disconnect under load.

Note Derating

Notice derating

Protection Degree / IP Rating Note

IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked

Note

Do not connect or disconnect under load.


Report An Error

Part Numbers

Item # Item Description Cable Length
932884008 G 4 KW 1 F 0,15M 0.15 m
932884009 G 4 KW 1 F 0.23M 0.23 m
