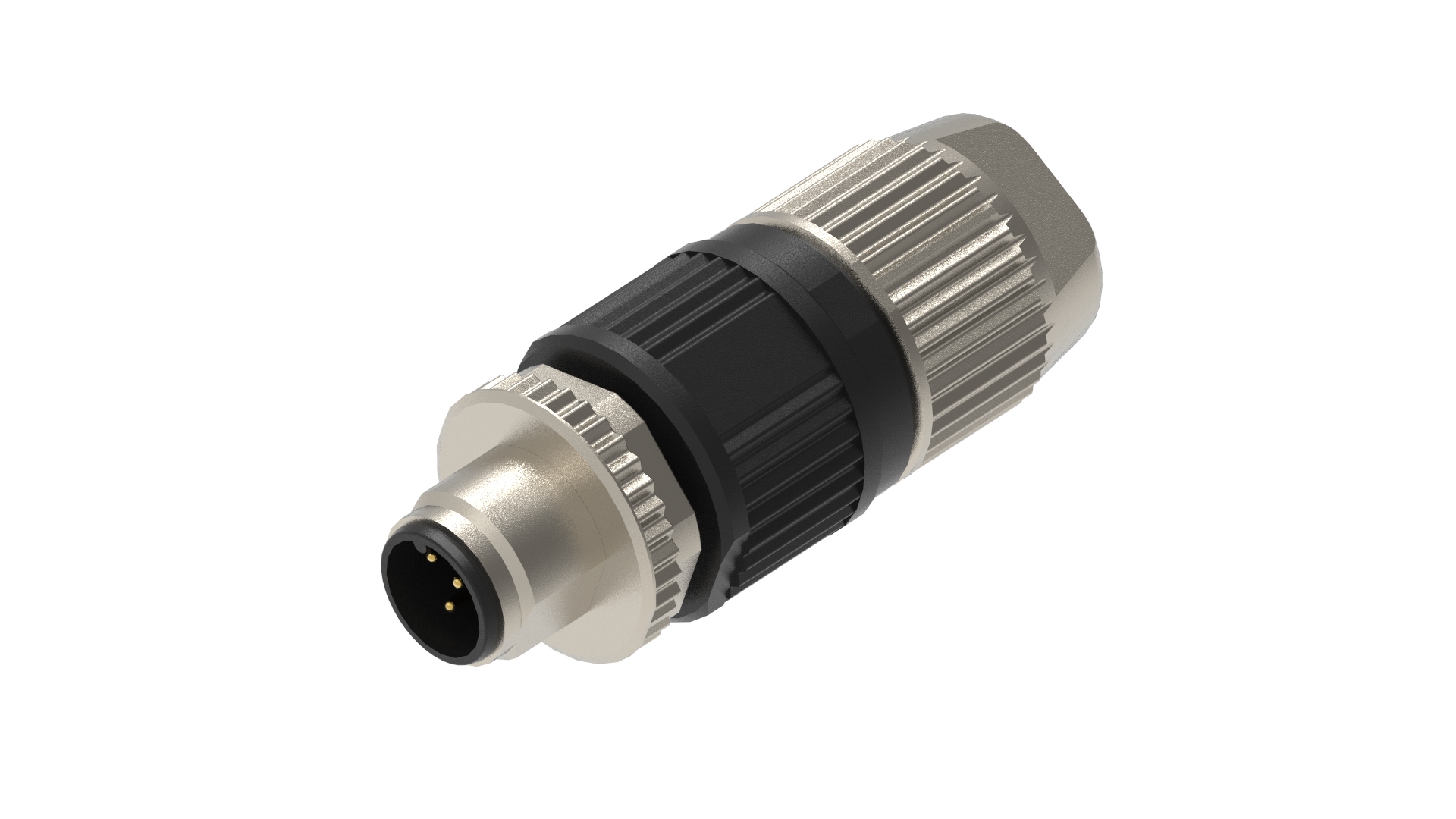

M12 Field Attachable Connector for decentralized field assembly, insulation displacement contact termination method (IDC), male, 5-pole, A-coded, zinc diecast metal housing with polyamid compoinent, for harsh environment, IP65/IP67, unshielded, straight, 0,34…0,5mm², AWG 20AWG22, rated voltage 50V, rated current 4A

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Expand All

Face View

Product Family	Sensor / Actuator Connectors
Side 1 Product Sub Family	M12 Standard
Connector Type	Field attachable
Side 1 Type of Contact/Gender	male
Connector Design	straight
Number of Pins	4
Coding, Side 1	A
Attachment Type	Coupling Nut
Rated Impulse Voltage	1,5 kV
Operating Voltage	50 V AC/DC
Current Rating	4 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Type of Connection	insulation displacement contact (IDC)
Maximum Wire Cross Section	0,25mm²...0,5 mm²
Strain-Relief	clamping cage
Suitable Cables	Ø6...Ø8 mm
Ambient Temperature (Operation)*	-40°C to +85°C
Operating Temperature (UL)	max. 85 °C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III

Materials

Contact Base Material	CuZn
Side 1 Contact Plating	AuNi
Contact Bearer Material	PBT
Contact Bearer Color	black
Housing Material	zinc diecast with polyamid component
Housing Color	grey metallic
Attachment Material	CuZn
Attachment Plating	nickel-plated

Circuitry

Fastening Torque (Attachment)	50-60 Ncm

Approvals

UL-File	E95522
UL	cURus

Safety & Environmental Compliance

RoHS Compliant	yes, compliant with exception. 6c.:Copper alloy with a mass fraction of up to 4% lead

Notes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Information

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
