G Series - WRKT 5-522

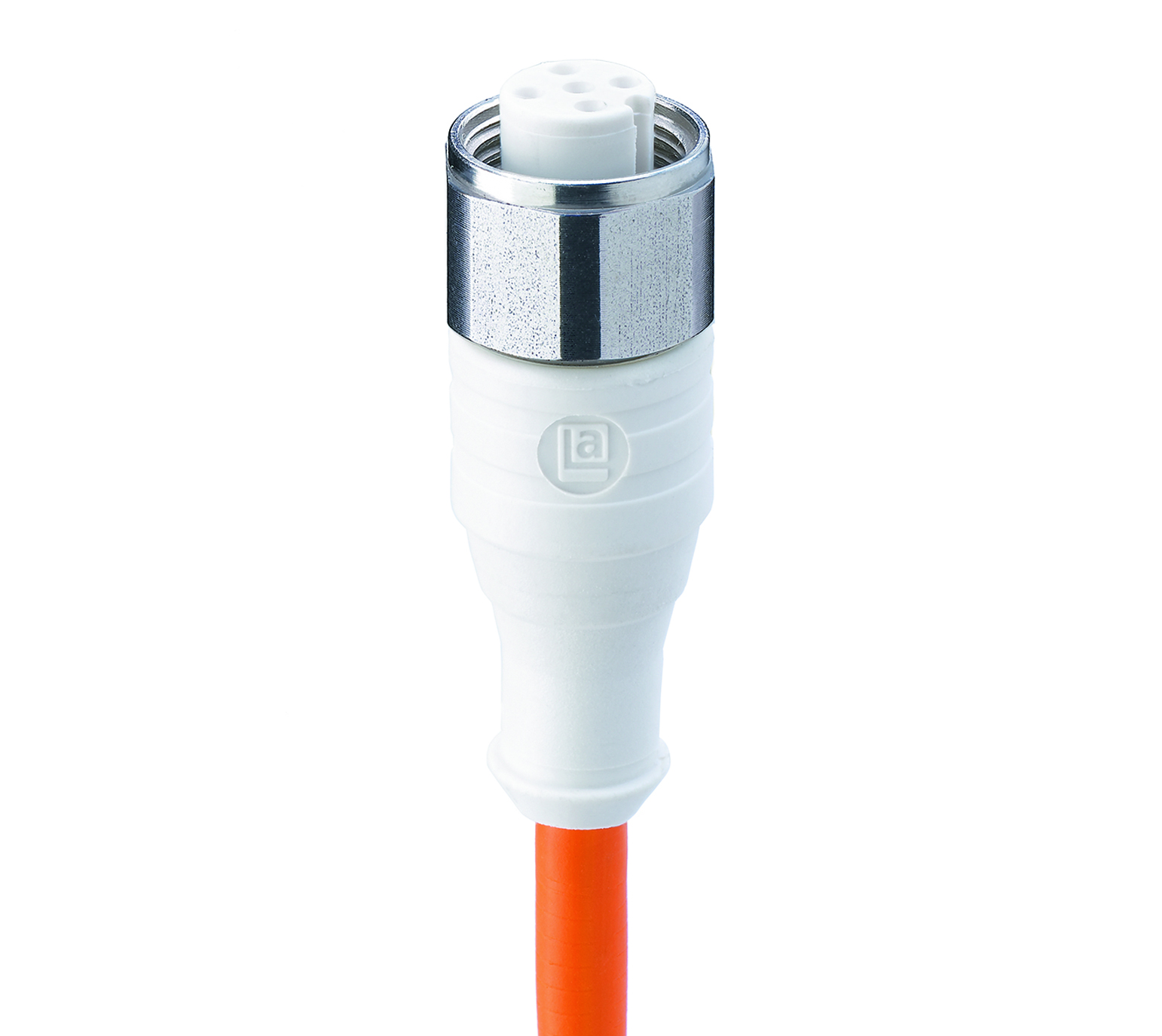

M12 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset: Female, straight, 5-pin, A-coded, white body, 50 V AC / 60 V DC, 4 A; TPE orange cable, 5-wires, 0.25 mm²

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources
Where to buy

Specifications

Expand All

Information

Face View

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5
brown	white	blue	black	grey

Product Family	Sensor / Actuator Connectors
Side 1 Product Sub Family	M12 F&B (Wash-Down)
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Female
Connector Design	Straight
Number of Pins	5
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Coupling Nut
Voltage Rating	60 V
Rated Voltage (UL)	30 V AC/DC
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC / 60 V DC
Current Rating	4 A
Rated Current (UL)*	4 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 105 °C
Operating Temperature (UL)	max. + 65 °C
Protection Degree / IP Rating**	IP65, IP67, IP68 (1 m / 24 h), IP69K
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PP-GF
Contact Bearer Color	White
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	PP-GF
Molded Body Color	White
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Stainless Steel
O-Ring Material	EPDM, black

Circuitry

Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Number	522
Conductor Size	0.25 mm²
Number of Wires	5
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 2 M
Conductor Material	Cu
Cable Jacket Material	TPE-V-compound, flame retardent
Cable Jacket Color	orange
Cable Diameter D	ø 5.0 ± 0.20 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1.25 mm
Ambient Temperature (Fixed Installation)	- 40 °C - + 90 °C
Ambient Temperature (Flex Installation)	- 25 °C - + 90 °C
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 21484
Flammability Class (Cable Jacket)	UL horizontal flame test, flame-retardant
Cable Characteristics	Free of silicone; Free of FCKW; Free offcadmium and lead; Microbe and hydrolysis resistant

Approvals

UL-File	E315587
UL	UL 2238; cURus

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

ECOLAB	Yes
Oil Resistance	Good chemical and oil resistance

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.

History

Update and Revision	Revision Number: 0.79 Revision Date: 02-03-2025

Information

Update and Revision	Revision Number: 0.79 Revision Date: 02-03-2025
