Product Sub Family

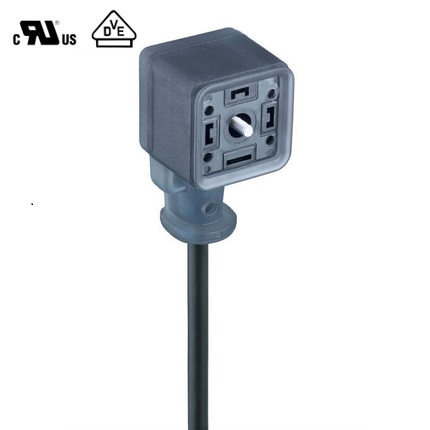

Cordset, single ended
Type of Contact / Gender
Number of Pins
3+PE (PE at cable outlet)
Rated Impulse Voltage
4.0 kV (PCBA 2.0 kV)
24 V AC/DC
≤ 10 mOhm
˃ 10^9 Ohm
Ambient Temperature (Operation)*
-25 °C - +85 °C (With additional 934-887-001 gasket : -40 °C - +105 °C)
Protection Degree / IP Rating**
IP65, IP67 (IP69K: without additional gasket; max. +80 °C)
DIN EN 175301-803-A, ISO 4400
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance
DIN EN 60664-1 (2008/01); VDE 0110-1
III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material
Contact Bearer Material
Contact Bearer Color
Flammability Class (Contact Bearer)
UL 94 V-0
Molded Body Material
Molded Body Color
Flammability Class (Molded Body)
UL 94 HB
Steel, Philips combi slot
Molded Integrated Gasket
Dual red-green LEDs (pressure switch)
Fastening Torque (Attachment)
Number of Wires
Minimal Bending Radius (Fixed Inst)
˃ 5 x D
Minimal Bending Radius (Flexible Inst)
˃ 10 x D
˃ 5 M
˃ 5 M @ ± 360 °/1 m
Cable Jacket Material
Cable Jacket Color
Cable Diameter D
ø 5.40 ± 0.20 mm
Wire Insulation Material
Insulated Wire Diameter
ø 1.50 ± 0.05 mm
Ambient Temperature (Fixed Installation)
- 50 °C - + 80 °C
Ambient Temperature (Flex Installation)
- 25 °C - + 80 °C
Ambient Temperature (Drag Chain Inst)
- 25 °C - + 60 °C
UL Cable Type
Flammability Class (Cable Jacket)
DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2
good microbes and hydrolysis resistance, mainly plasticizer diffusion free, good chemical and oil resistance, Exclusion of PVC and Silicone, free of lacquer wetting disturbing substances, Coldness Flexibilty
Protection Degree / IP Rating Note
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Do not connect or disconnect under load.
