Product Number: 1242A

Audio, Control & Instrument Cable, #22-4C, CM

Audio, Control & Instrument Cable, 4-22 AWG Solid Bare Copper Conductors, Polyolefin Insulated, PVC Jacket, CM Rated

  • Availability:
    Global
  • Status:
    Active

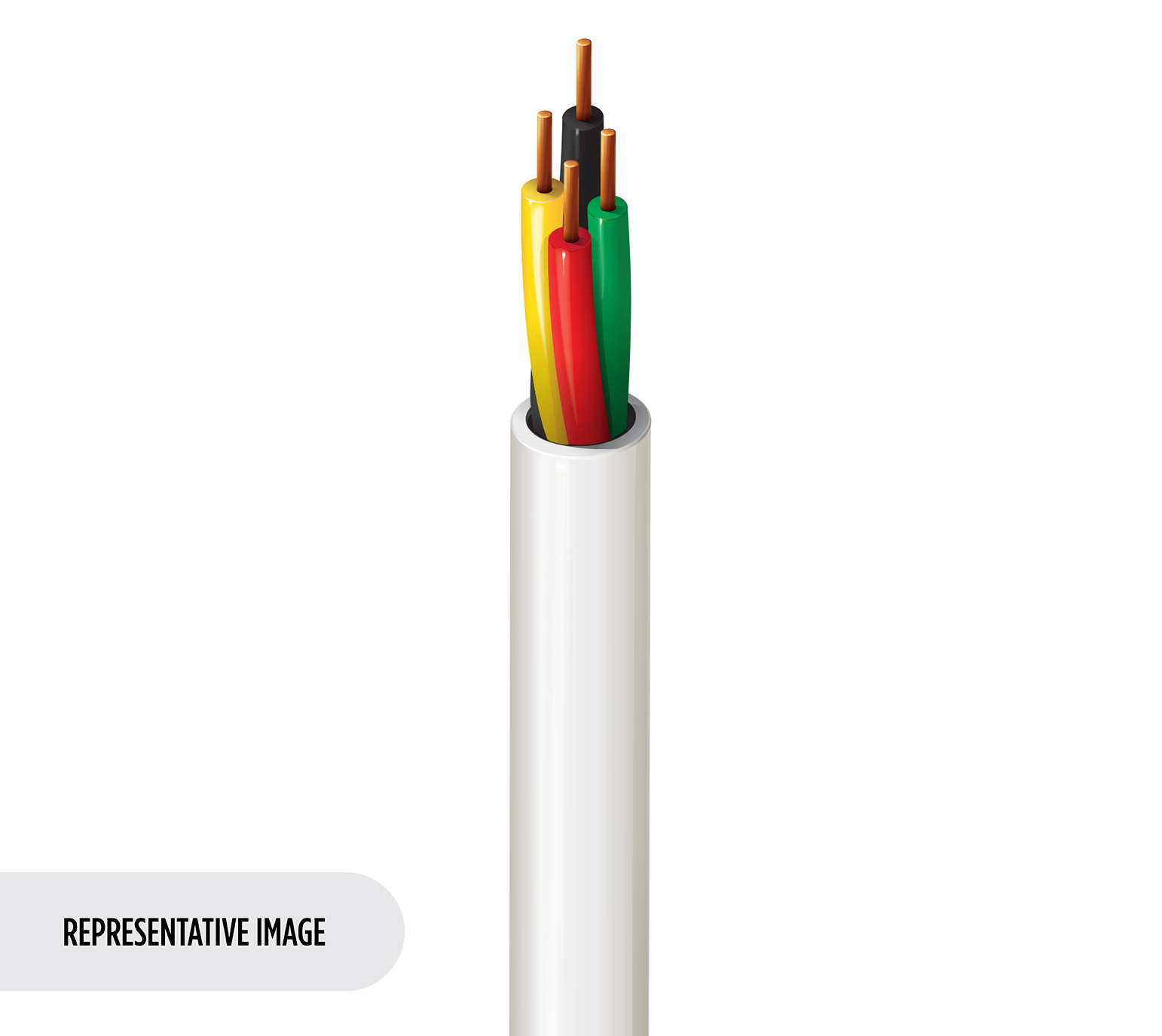

1242A
  • 1242A
1 of 1

Specifications

Expand All

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 4 22 AWG Solid BC - Bare Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PO - Polyolefin 0.009 in (0.23 mm) 0.0437 in (1.11 mm) Green, Red, Yellow, Black

Outer Shield

Material
No Shield

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.025 in (0.64 mm) 0.156 in (3.96 mm)

Overall Cable Diameter (Nominal)

0.156 in (3.96 mm)

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Delay Nom. Inductance Nom. Velocity of Prop. Max. Current
17.8 Ohm/1000ft (58.4 Ohm/km) 15 pF/ft (49 pF/m) 1540 ns/ft 0.17 µH/ft (0.56 µH/m) 66% 2.2 Amps per Conductor at 25ºC

High Frequency (Nominal/Typical)

Frequency [MHz] Nom. Insertion Loss (Attenuation) [dB/100m]
1 0.53

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
60°C -20°C to +60°C

Bend Radius

Stationary Min. Installation Min.
1.54 in (39.1 mm) 1.54 in (39.1 mm)

Max. Pull Tension

32 lbs (15 kg)

Bulk Cable Weight

15 lbs/1000ft (22 kg/km)

Environmental Suitability

Indoor - Riser, Indoor

Flammability / Reaction to Fire

UL 1685 UL Loading, UL 1685 Vertical Tray, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CM

CEC / C(UL) Compliance

CM

Data Category

Category 3

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.545 Revision Date: 09-15-2025

Update and Revision

Revision Number: 0.545 Revision Date: 09-15-2025


Report An Error

Part Numbers

Item # Color Putup Type Length UPC
1242A T35U1000 Beige, Pale Fawn UnReel 1,000 ft 612825109686
1242A 008U1000 Gray UnReel 1,000 ft 612825109693
