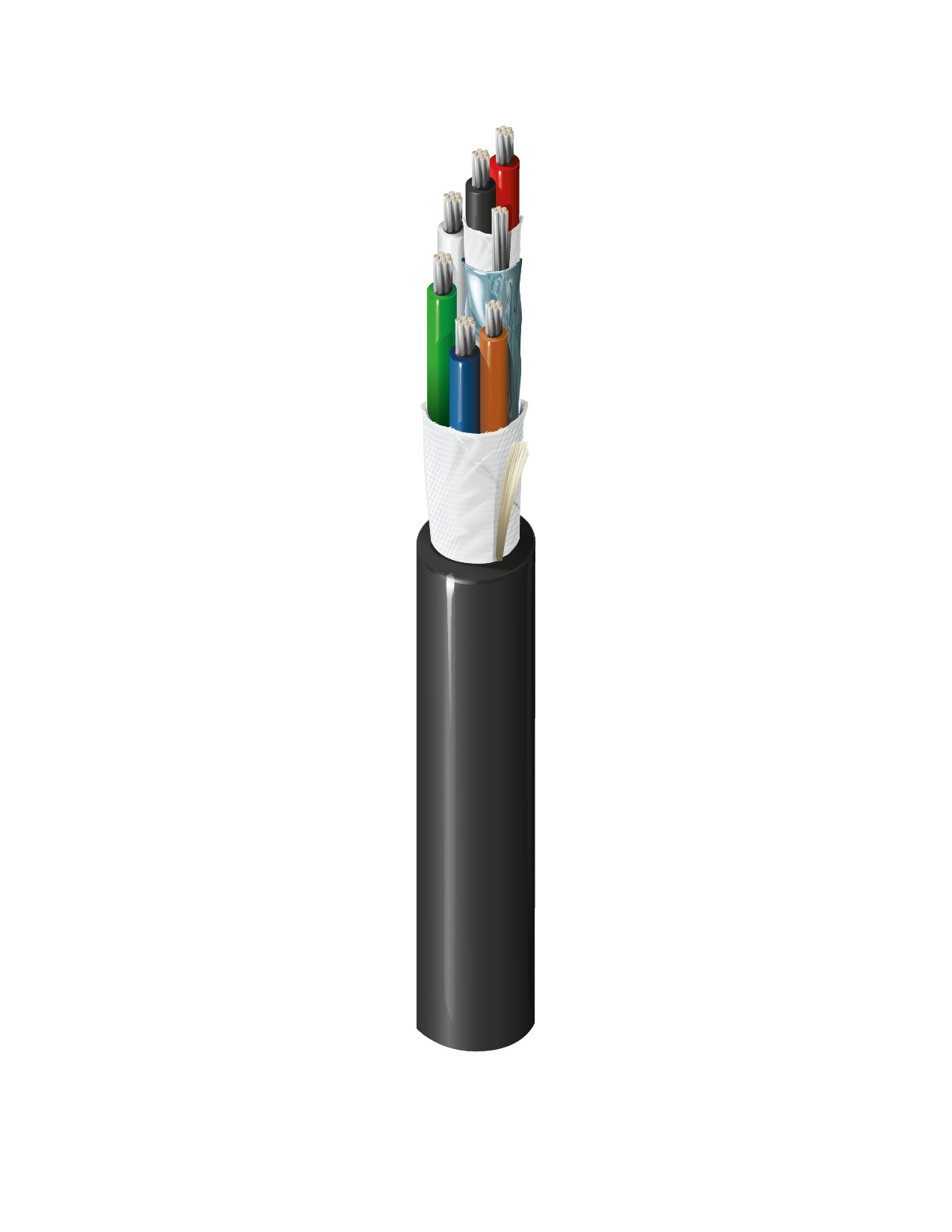

5504G1

Security & Sound, #22-1pr, #22-4c TC, Shielded Pair, CM, Water-Blocked

...
Security & Sound Cable, Rated-CM, 1-22 AWG stranded tinned copper pair with PVC insulation and Beldfoil® shield, 4-22 AWG stranded tinned copper pair with PVC insulation, overall waterblocking tape and PVC jacket with ripcord
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors No. of Pairs
22 7x30 TC - Tinned Copper 1
22 7x30 TC - Tinned Copper 4

Conductor Count

6

Insulation
Material Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.01 in
PVC - Polyvinyl Chloride 0.01 in
Color Chart
Number Color
Shielded Pair Black and Red
Conductor White
Conductor Green
Conductor Brown
Conductor Blue
Inner Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 24 7x32
No Shield
Outer Shield
Material
No Shield

Table Notes

Waterblocking tape

Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVC - Polyvinyl Chloride 0.268 in 0.025 in Yes
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
16.4 Ohm/1000ft 16.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
44.5 pF/ft 80.1 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Current
Max. Recommended Current [A]
2.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Operating Temp Range

-20°C To +105°C

Mechanical Characteristics

Bulk Cable Weight

31.5 lbs/1000ft

Max. Pull Tension

54.6 lbs

Min. Bend Radius/Minor Axis

2.75 in

Standards

NEC Articles

Article 800

NEC/(UL) Compliance

CM

CEC/C(UL) Compliance

CM

CPR Euroclass

Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

Yes

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability

FT4

UL Flammability

UL1685 UL Loading

IEC Flammability

IEC 60332-1-2

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Footnote

C - CRATE REEL PUT-UP.

History

Update and Revision

Revision Number: 0.310 Revision Date: 08-27-2021

Part Numbers
Item # Color UPC
5504G1 0101000 Black 612825163787
5504G1 0081000 Gray 612825163770
