Product Number: BE43906

LIGHTNING CONTROL DMX512 PVC

LIGHTNING CONTROL 2 PAIR 22AWG/0.34mm² DMX512 PVC

  • Availability:
    Global
  • Status:
    Active

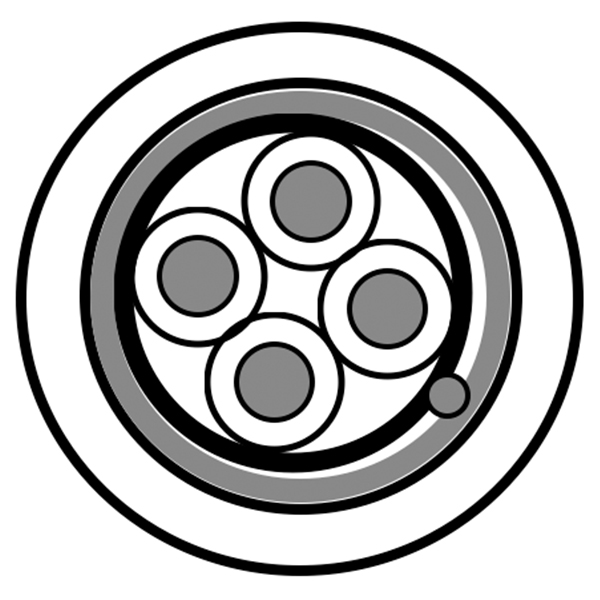

BE43906
  • BE43906
1 of 1

Specifications

Expand All

Suitable Applications

DMX 512 lighting control applications

Conductor

Size Stranding Material
22 7x30 TC - Tinned Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene 1.35 mm (0.0531 in) White & Red, Green & Black

Outer Shield

Shield Type Material Coverage
Braid Tinned Copper (TC) 80%
Tape Bi-Laminate (Alum+Poly) 100%

Outer Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 6.80 mm

Outer Jacket1 Table Notes

Flexible Matte Finish Sheath

Electricals

Max. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Inductance
58 Ohm/km 70 pF/m (21 pF/ft) 112 pF/m (34.1 pF/ft) 0.68 µH/m (0.21 µH/ft)

Temperature

Storage
-25°C To +70°C

Bulk Cable Weight

61 kg/km (41 lbs/1000ft)

Environmental Suitability

Indoor

CPR Compliance

CPR Euroclass: Fca

Update and Revision

Revision Number: 0.183 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.183 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
BE43906.00250 Black Reel 250 m 8719605026606
BE43906.00500 Black Reel 500 m 8719605026613
BE43906.001000 Black Reel 1,000 m 8719605026590
