Product Number: M1-8SFP

Media module (8 x 100BASE-X with SFP slots) for MACH102

8 x 100BASE-X port media module with SFP slots for modular, managed, Industrial Workgroup Switch MACH102

  • Availability:
    Global
  • Status:
    Active

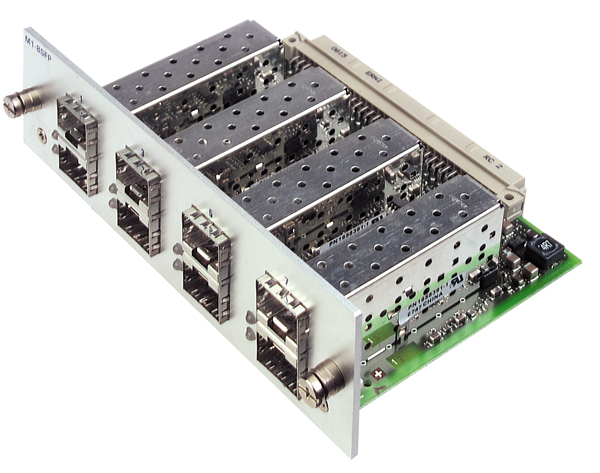

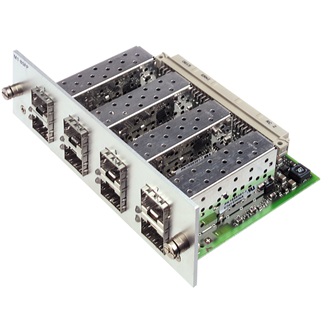

M1-8SFP
  • M1-8SFP
1 of 1

Specifications

Expand All

Description

8 x 100BASE-X port media module with SFP slots for modular, managed, Industrial Workgroup Switch MACH102

Single mode fiber (SM) 9/125 µm

see SFP LWL module M-FAST SFP-SM/LC and M-FAST SFP-SM+/LC

Single mode fiber (LH) 9/125 µm (long haul transceiver)

see SFP LWL module M-FAST SFP-LH/LC

Multimode fiber (MM) 50/125 µm

see SFP LWL module M-FAST SFP-MM/LC

Multimode fiber (MM) 62.5/125 µm

see SFP LWL module M-FAST SFP-MM/LC

Power consumption

11 W (incl. SFP module)

Power output in BTU (IT)/h

37

MTBF (Telecordia SR-332 Issue 3) @ 25°C

38 097 066 h

Operating temperature

0-50 °C

Storage/transport temperature

-20-+85 °C

Relative humidity (non-condensing)

10-95 %

Dimensions (WxHxD)

138 mm x 90 mm x 42mm

Weight

130 g

Mounting

Media Module

Protection class

IP20

EN 61000-4-2 electrostatic discharge (ESD)

4 kV contact discharge, 8 kV air discharge

EN 61000-4-3 electromagnetic field

10 V/m (80-2700 MHz)

EN 61000-4-4 fast transients (burst)

2 kV power line, 4 kV data line

EN 61000-4-5 surge voltage

power line: 2 kV (line/earth), 1 kV (line/line), 4 kV data line

EN 61000-4-6 Conducted Immunity

10 V (150 kHz-80 MHz)

EN 55022

EN 55022 Class A

FCC CFR47 Part 15

FCC 47CFR Part 15, Class A

Safety of industrial control equipment

cUL 508

Safety of information technology equipment

cUL 60950-1

Guarantee

60 months (please refer to the <lt/>a href="https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf";<gt/>terms of guarantee <lt/>/a<gt/> for detailed information)

Scope of delivery

Media module, user manual

Update and Revision

Revision Number: 0.119 Revision Date: 04-29-2025

Update and Revision

Revision Number: 0.119 Revision Date: 04-29-2025


Report An Error

Part Numbers

Item # Type
943970301 M1-8SFP
