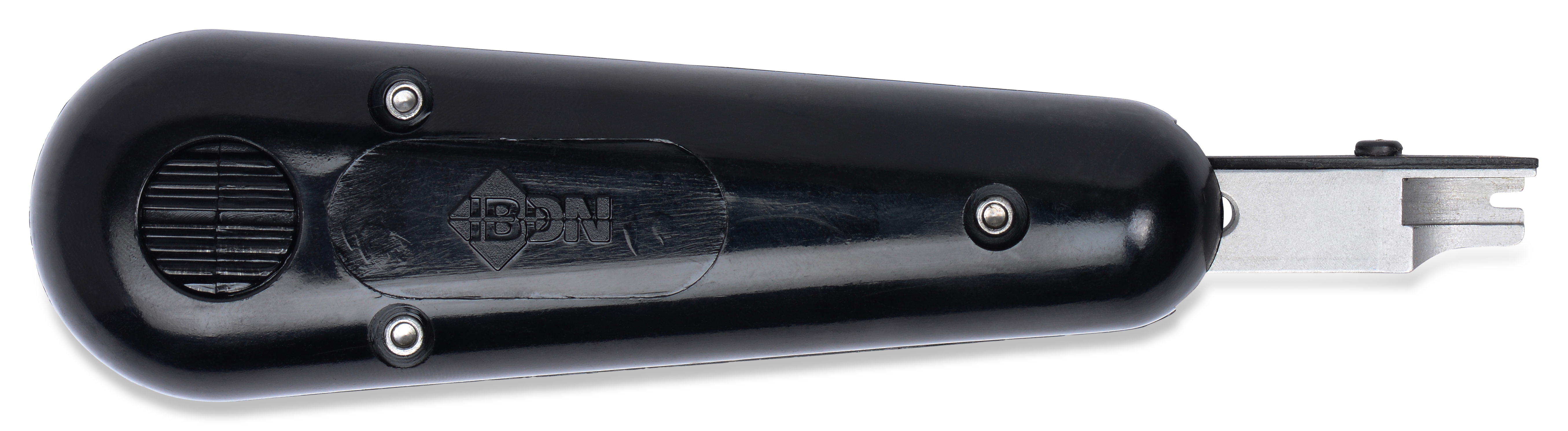

Product Number: AX100749

Connecting Tool

Connecting Tool

  • Availability:
    Global
  • Status:
    Active
AX100749
  • AX100749
1 of 1

Specifications

Report An Error

Suitable Applications

To terminate cables, pigtails or cross-connect wires on any 110 product.

Insulation

Nominal Diameter
0.119 mm

Outer Jacket

Nominal Diameter
0.12 mm
0.116 in

Packaging

Individually packaged in carton

Weight

0.25 g

Materials

Description Material
Handle Plastic
Blade Metal

Inductance

Nominal Inductance
0.119 µH/m

Installation Temperature Range

-10°C To +60°C

Storage Temperature Range

-40°C To +70°C

Dimensions

Length Width Height
6.25 1 1.5

EU Directive Compliance

EU Directive 2011/65/EU (ROHS II)

Suitability - Indoor

Yes

Related Parts

110 Connector, Tool Pouch, Pigtails, Cross-Connect Wire.

Notes

Visit our web site at http://www.belden.com

Update and Revision

Revision Number: 0.59 Revision Date: 11-09-2022

Update and Revision

Revision Number: 0.59 Revision Date: 11-09-2022

Part Numbers

Item # Color UPC
AX100749 Black 611589002103
