Product Number: FCSX12SCMF

FX ECX CASS OS2 12P MPO12(F) SC_SX TYPE-A BL_ADP

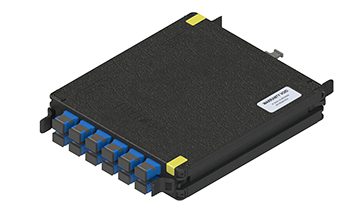

FX ECX CASSETTE, OS2, 12 PORTS, MPO-12 (FEMALE), SC SIMPLEX, TYPE-A, BLUE ADAPTERS

  • Availability:
    Global
  • Status:
    Active
FCSX12SCMF
  • FCSX12SCMF
1 of 1

Specifications

Expand All

Suitable Applications

FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Weight

0.500 lbs

Overall Height

1.290 in.

Overall Width

6.340 in

Depth

8.685 in

Max Capacity

12 Fibers

Mechanical Tests

Description

Operating Temperature Range

-10°C to +60°C

Storage Temperature Range

-10°C to +60°C

Materials

Description Material Color Type
Front Connector/Adapter Plastic - UL94V-0 Blue SC Simplex
Rear Connector/Adapter Plastic - UL94V-0 Green MPO Female
Cassette Assembly PC/ABS Black

MII Order #39 (China RoHS)

EUP 50

Related Parts

FX ECX Patch Panels, Patch Cords, MPO Trunks

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box

Notes

For more information, please refer to our website at http://www.belden.com

Update and Revision

Revision Number: 0.23 Revision Date: 10-23-2025

Update and Revision

Revision Number: 0.23 Revision Date: 10-23-2025
