Product Number: LF14SC12B

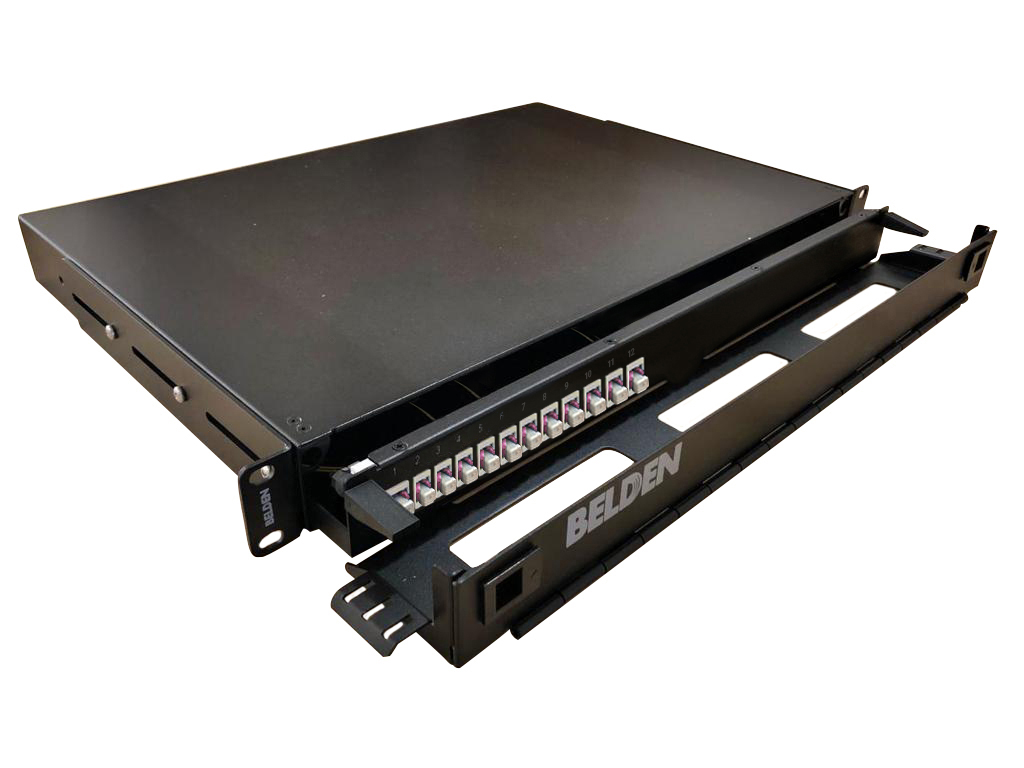

1U 12 Simplex SC-PC (12 Fiber) OM4 Loaded Patch Panel with Splicing Tray - Half loaded
1U 12 Simplex SC-PC (12 Fiber) OM4 Loaded Patch Panel with Splicing Tray - Half loaded
-
Availability:
Asia Pacific
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Fiber Express solution for Backbone, Telecommunication Room, Main Distribution room and Data centers |
|---|
Physical Characteristics (Overall)
|
Height |
43.2 ± 0.3 mm |
|---|---|
|
Width |
482.6 mm |
|
Depth |
370 mm |
|
Port Count |
12 Port |
|
Front Connection |
Flush |
|
Packaging |
Individually packaged in a cardboard box |
|
Weight |
4.5000 kg |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Panel | Textured powder coated Steel | Black |
| Fiber Adapter | Plastic | Erika Violet |
| Accessories inside panel | ABS injection-molded splice tray pre-loaded in the panel, Velcro Straps, Cable Ties, PG13.5 water joint, Splice tubing, Adapters, 12 nos 2M Pigtails and Blanks |
Construction and Dimensions
|
Max Capacity |
12 SC Simplex Adapters (12 Ports) |
|---|
Temperature Range
|
Installation Temperature Range |
-10⁰C to +60⁰C |
|---|---|
|
Storage Temperature Range |
-40⁰C to +70⁰C |
|
Operating Temperature Range |
-10⁰C to +60⁰C |
Mechanical Characteristics
|
Footprint/Type |
SC-PC |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
History
|
Update and Revision |
Revision Number: 0.10 Revision Date: 04-08-2022 |
|---|
