Product Number: FX UHD Wall Mount Housing

FX UHD Wall Mount Housing, Empty, Black or Grey

FiberExpress UHD Wall Mount Patch Panel, Empty, Black or Grey

  • Availability:
    Global
  • Status:
    Active

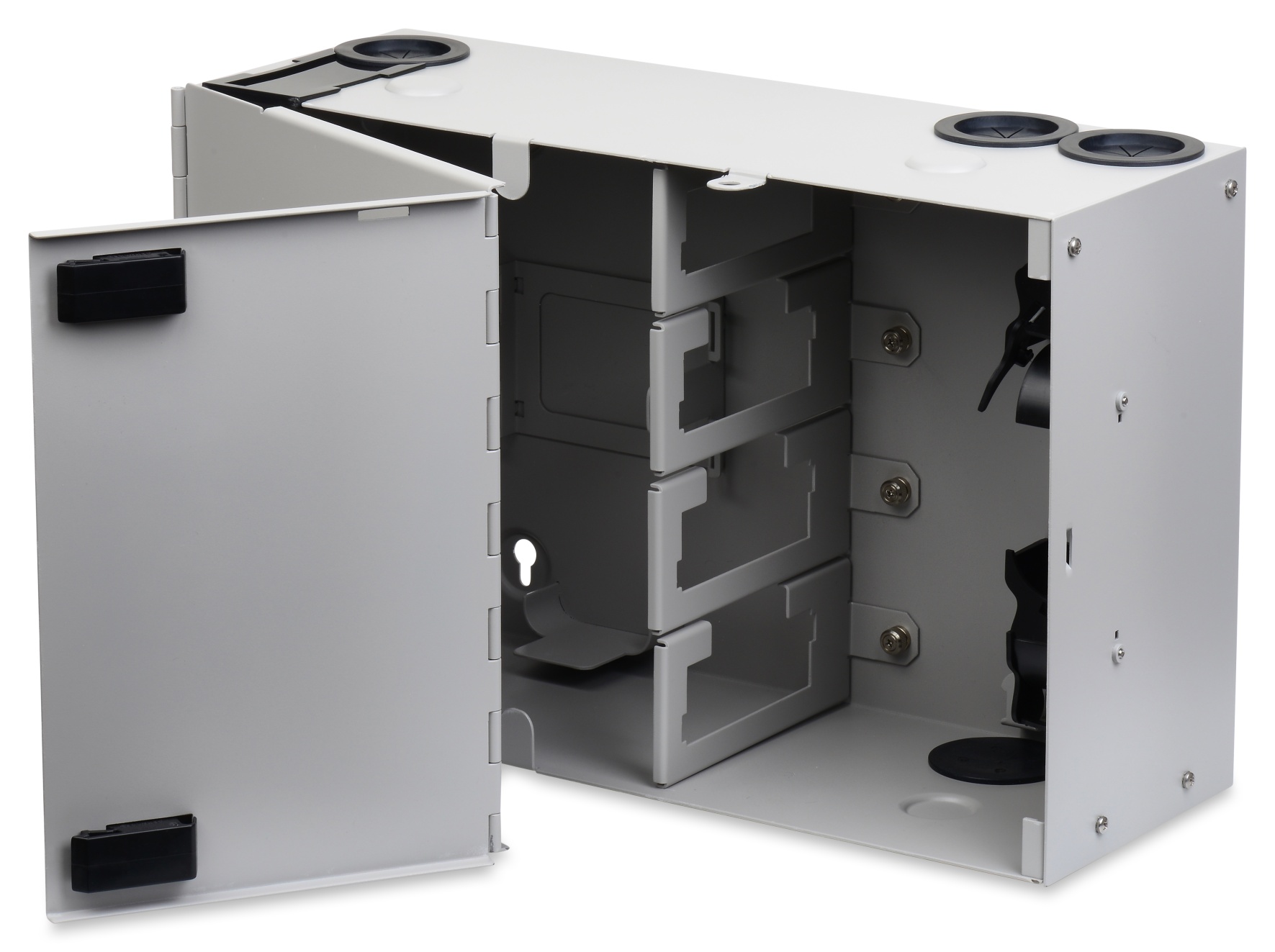

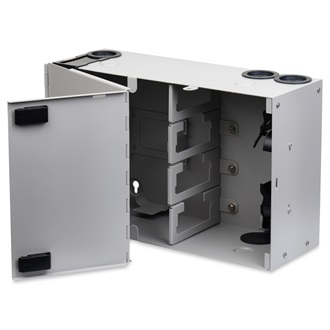

FX UHD Wall Mount Housing
5 of 5

Specifications

Expand All

Environmental Space

Indoor

Suitable Applications

FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room

Weight

15.68 lbs

Overall Height

11.77 in

Overall Width

18.61 in

Overall Length

7.49 in

Max Capacity

4 Cassettes; 4 Frames; 144 Fibers (LC Duplex); 48 Fibers (SC, SC Duplex, ST); 4 FXU Fusion Trays, 8-inch (AX103912)

Mechanical Tests

Description

Operating Temperature Range

-10°C To +60°C

Installation Temperature Range

-10°C To +60°C

Storage Temperature Range

-40°C To +70°C

Materials

Description Material Color
Wall Mount Steel Black or Grey
Removable Dust Cover Steel Black or Grey
Grommet Elastomer Black
FX Ultra HD Spool Plastic Black

MII Order #39 (China RoHS)

EUP 50

Included Parts

1x I.D. label; 1x Management Spool; 1x Stencil; 4x Wood Screws; 1x Velcro Cable Tie; 1x Short Wing Lock; 1x Worm Drive Clamp #16; 1x Elastic Cable Tie; 4x Self-Locking Cable Ties; 1x Installation Guide

Related Parts

FiberExpress UHD Frames, Cassettes, Bezels, Trays

Packaging

Individually packaged in a cardboard box.

Notes

For proper installation refer to Installation Guide PX106311 included with the product

Update and Revision

Revision Number: 0.311 Revision Date: 03-20-2026

Update and Revision

Revision Number: 0.311 Revision Date: 03-20-2026


Report An Error

Part Numbers

Item # Length UPC
AX106817 7.49 in 611589202244
AX106818 7.49 in 611589202251
