APC1172A44100D9M

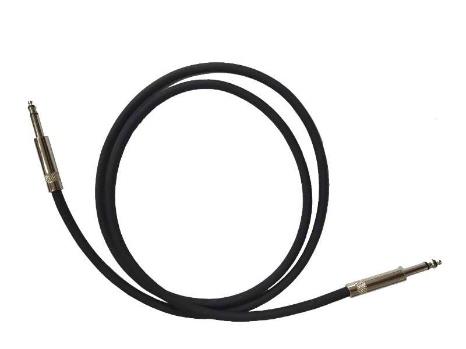

1172A Microphone Cable, Straight Stereo Plug, Audio Patch Cord

...
1172A Microphone Cable, Straight Stereo Plug, Audio Patch Cord
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Inner Shield
Type Coverage [%]
Braid 95%

Packaging

Product Individually packaged in a transparent polybag.

Connectors
Materials
Description Material Type
Connector Nickel contacts Bantam(TT) 4.4mm plug
Construction and Dimensions

Cable Type

Star quad microphone cable (1172A)

Temperature Range

Operating Temperature Range

-10℃ to +60℃

Mechanical Characteristics

Max. Pull Tension

37 lbs

Min Bend Radius (Overall Cable)

2 in.

Related Part Numbers

Related Parts

Belden’s A PNS1 048 and A PNS10 96 Audio Patch Panel

History

Update and Revision

Revision Number: 0.14 Revision Date: 04-08-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Length
APC1172A44100D9M Black 0.9 m
APC1172A44102D0M Black 2.0 m

Resources
Product Bulletins
Belden Custom Broadcast Assemblies
Catalogs
Industry Standards
SMPTE Standards
