Product Number: FRTD1
Fiber Raceway Duct Cable Separator Kit
Fiber Raceway Duct Cable Separator Kit, Standard
-
Availability:
EMEA | Americas
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor |
|---|
Construction
|
Weight |
2.204 lbs |
|---|---|
|
Height |
3.149 in (79.985 mm |
|
Width |
3.622 in |
|
Length |
76.771 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material |
|---|
| Fire retardant plastic. Halogen free, UL94‐VO rated |
Product Notes
|
Notes |

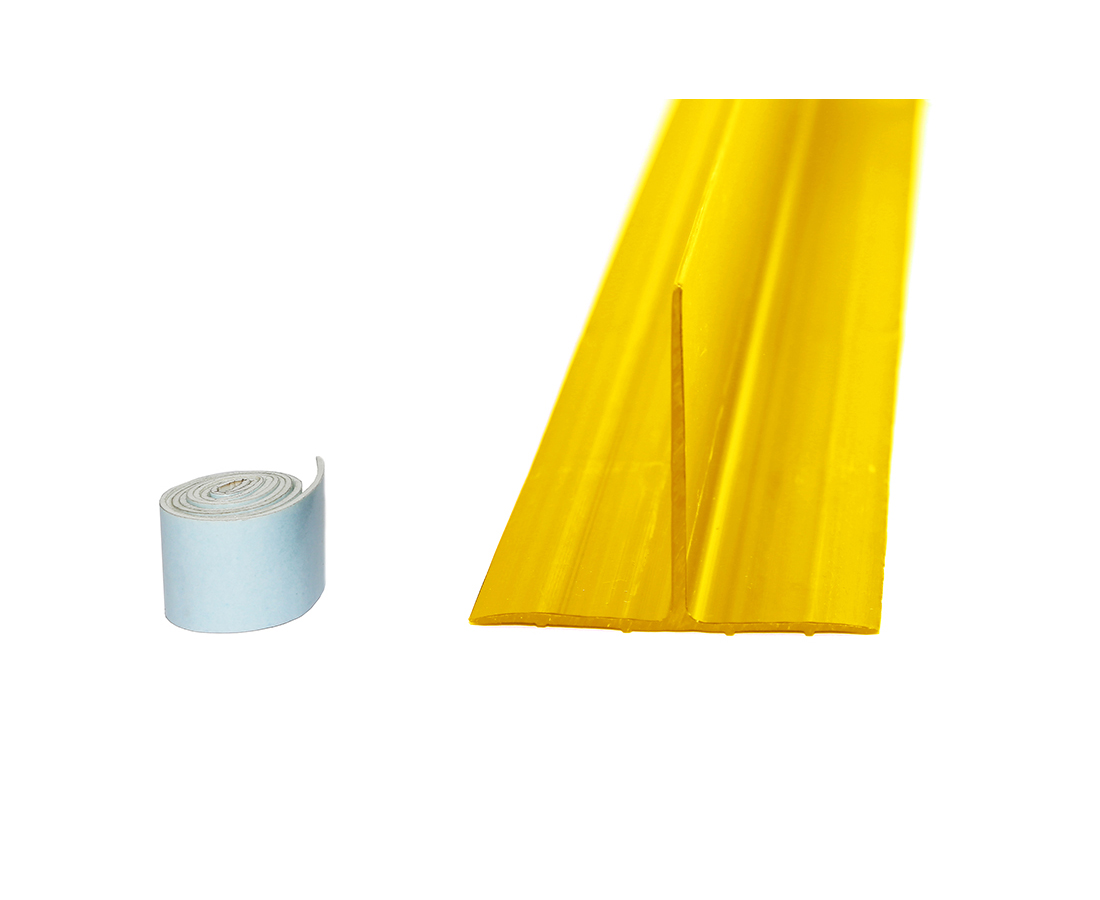

The Duct Cable Separator Kit is installed longitudinally along the length of a duct run, to provide a separator or divider in the duct. The item is used to create separate compartments for different cords or cables. A 500mm length of double sided tape is supplied and is used to fasten the cable separator kit in position, longitudinally down the duct run. |
|---|
History
|
Update and Revision |
Revision Number: 0.31 Revision Date: 03-28-2024 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.31 Revision Date: 03-28-2024 |
|---|
Part Numbers
| Item # | Color | Length |
|---|---|---|
| FRTD1 | Metallic | 76.771 in |
