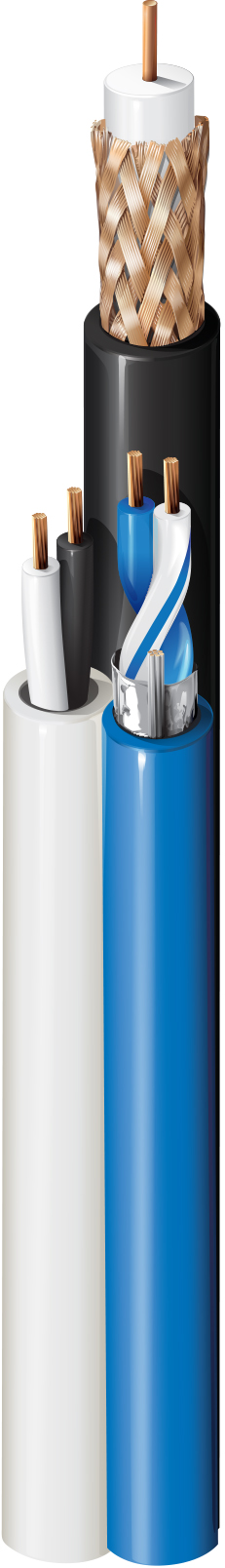

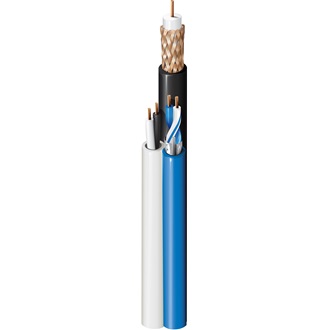

503PTZ

PTZ, RG-59 #20, #18-1pr, #14-2c, Shielded, CMR, Siamese

...
PTZ (CCTV + Control + Power) Cable, Riser-CMR, 1-RG59 20 AWG solid bare copper with foam polyolefin, 95% bare copper braid, 1-18 AWG stranded bare copper pair with polyolefin insulation and Beldfoil® shield, 2-14 AWG stranded bare copper conductors with PVC insulation, Siamese with PVC jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)

Physical Characteristics (Overall)
Conductor
Element AWG Stranding Material Nominal Diameter No. of Conductors No. of Coax
Coax(es) 20 Solid BC - Bare Copper 0.032 in 1
Pair1 18 19x30 BC - Bare Copper 0.044 in 2
Pair2 14 19x27 BC - Bare Copper 0.07 in 2

Conductor Count

5

Insulation
Element Material Nominal Diameter Nominal Wall Thickness
Coax(es) PE - Polyethylene (Foam) 0.145 in
Pair1 PP - Polypropylene 0.018 in
Pair2 PVC - Polyvinyl Chloride 0.014 in

Table Notes

Gas Injected

Color Chart
Number Color
Coax Core White
Pair1 Blue & White/Blue
Pair2 Black & White
Color Chart 4
Number Color
Coax Jacket Black
Pair1 Jacket Blue
Pair2 Jacket White
Inner Shield
Element Type Material Material Trade Name Coverage [%]
Coax(es) Braid Bare Copper (BC) 95%
Pair1 Tape Bi-Laminate (Alum+Poly) Beldfoil® 100%
Pair2 No Shield
Inner Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.227 in 0.030 in
PVC - Polyvinyl Chloride 0.219 in 0.028 in
PVC - Polyvinyl Chloride 0.236 in 0.020 in
Outer Shield
Drainwire Construction n x D
7x28
Outer Jacket
Material Nominal Diameter
Banana Peel (No Overall Jacket) 0.496 in
0.219 in
0.236 in
0.496 in
Electrical Characteristics
Conductor DCR
Element Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Inner Shield DCR
Coax(es) 10 Ohm/1000ft 10 Ohm/1000ft 3.5 Ohm/1000ft
Pair1 6.5 Ohm/1000ft 6.5 Ohm/1000ft
Pair2 2.5 Ohm/1000ft 2.52 Ohm/1000ft
Capacitance
Element Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Shield
Coax(es) 16.3 pF/ft
Pair1 26 pF/ft 44 pF/ft
Pair2 21.5 pF/ft
Impedance
Element Nominal Characteristic Impedance
Coax(es) 75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.3 dB/100ft
5 MHz 0.65 dB/100ft
10 MHz 0.9 dB/100ft
50 MHz 1.9 dB/100ft
100 MHz 2.6 dB/100ft
200 MHz 3.6 dB/100ft
400 MHz 5 dB/100ft
700 MHz 7 dB/100ft
900 MHz 8 dB/100ft
1000 MHz 8.5 dB/100ft
Delay
Element Max. Delay Skew Nominal Delay Nominal Velocity of Propagation (VP) [%]
Coax(es) 83 ns/100m 1.22 ns/ft 83%
Current
Element Max. Recommended Current [A]
Coax(es)
Pair1 5.2 Amps per Conductor at 25ºC
Pair2 5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Installation Temperature Range

0°C To +75°C

UL Temp Rating

75°C

Operating Temperature Range

-10°C To +75°C

Separation Temp Range

0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

97 lbs/1000ft

Max. Pull Tension

190 lbs
Standards

NEC Articles

Article 800

NEC/(UL) Compliance

CM

CEC/C(UL) Compliance

CM

RG Type

59

Other Specification

Video coax: RG 59/U
Applicable Environmental and Other Programs

Environmental Space

Indoor - Riser

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

Yes

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Product Notes

Notes

RG59 CCTV + 1 STP 18 AWG Control Grade + 2C 14 AWG CM. Individually jacketed and color coded components, cabled around and each fused to a central binding spline. Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation.

History

Update and Revision

Revision Number: 0.361 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
503PTZ 0001000 Black, Blue, White 612825155997
