1220B

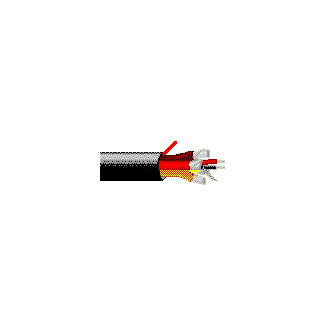

Audio Snake Cable, #22-12pr, TC, Indiv. Shielded

...
Audio Snake Cable, 12-22 AWG tinned copper pairs, Datalene® insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, flexible PVC jacket
Get Product Alerts

Specifications
Product Overview

Suitable Applications

Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
22 7x30 TC - Tinned Copper 0.03 in 12

Conductor Count

24

Total Number of Pairs

12

Insulation
Material Material Trade Name Nominal Diameter Nominal Wall Thickness
PE - Polyethylene (Foam) Datalene® 0.06 in 0.015 in
Color Chart
Number Color
1 Brown
2 Red
3 Yellow
4 Orange
5 Green
6 Blue
7 Purple
8 Gray
9 White
10 Black
11 Tan
12 Pink
Inner Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire Diameter Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 0.030 in 22 7x30
Inner Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.153 in 0.015 in
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVC - Polyvinyl Chloride 0.76 in 0.074 in Yes
Electrical Characteristics
Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
10.6 Ohm/1000ft 15 Ohm/1000ft 15 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
19 pF/ft 35 pF/ft
Inductance
Nominal Inductance
0.2 µH/ft
Delay
Nominal Velocity of Propagation (VP) [%]
78%
Current
Max. Recommended Current [A]
1.5 Amps per Conductor at 20ºC
Voltage
Non-UL Voltage Rating Voltage Rating [V]
150 V RMS 300 V RMS
300 V RMS
Temperature Range

Non-UL Temp Rating

60°C

Operating Temperature Range

-20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight

271 lbs/1000ft

Max. Pull Tension

328 lbs

Min. Bend Radius/Minor Axis

7.75 in

Applicable Environmental and Other Programs

Environmental Space

Indoor (Not Riser or Plenum)

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.

Product Notes

Notes

Datalene® insulation features include a low dielectric constant and a low dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight. Pair jackets and shields are bonded so both strip simultaneously with automatic stripping equipment.

History

Update and Revision

Revision Number: 0.354 Revision Date: 01-10-2024

Part Numbers
Item # Color Put-Up Type Length UPC
1220B B59500 Black, Matte Reel 500 ft 612825109099
1220B B591000 Black, Matte Reel 1,000 ft 612825109082
