Product Number: 1508ENH

AUDIO ANALOG 1 PAIR, 24AWG, ISTP, LSZH

ANALOG AUDIO 1 PAIR, 24AWG/0.22mm², ISTP, LSZH

  • Availability:
    Global
  • Status:
    Active

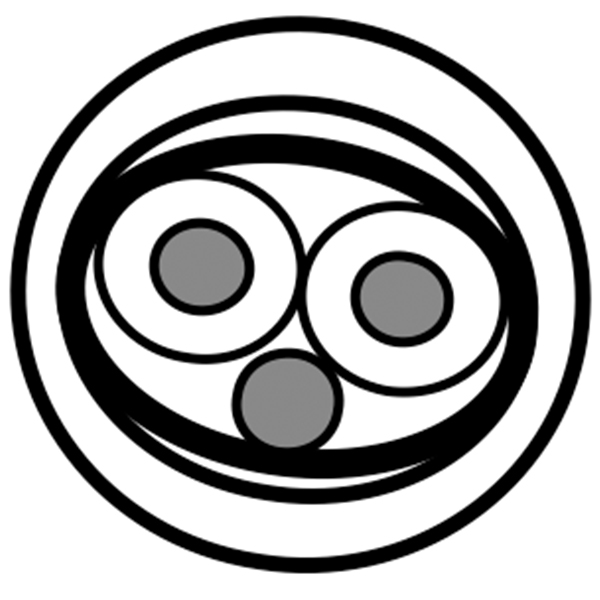

1508ENH
  • 1508ENH
1 of 1

Specifications

Expand All

Suitable Applications

1 pair 24AWG halogen-free multi core cable for analogue audio; For analogue audio

Conductor

Size Stranding Material
24 7x32 TC - Tinned Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene 1.02 mm (0.0402 in) Red & Black

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

Outer Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 3.3 mm

Outer Jacket1 Table Notes

According EN 50290-2-20

Electricals

Max. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Inductance
88.5 Ohm/km 92 pF/m (28 pF/ft) 180 pF/m (55 pF/ft) 0.75 µH/m (0.23 µH/ft)

Nom Outer Shield DCR@Cond DCR1-cnv

52 Ohm/km (16 Ohm/1000ft)

Bend Radius

Installation Min.
33.3 mm

Max. Pull Tension

73 N (16 lbf)

Environmental Suitability

Indoor

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.186 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.186 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
1508ENH.00500 Gray Reel 500 m 8719605001610
