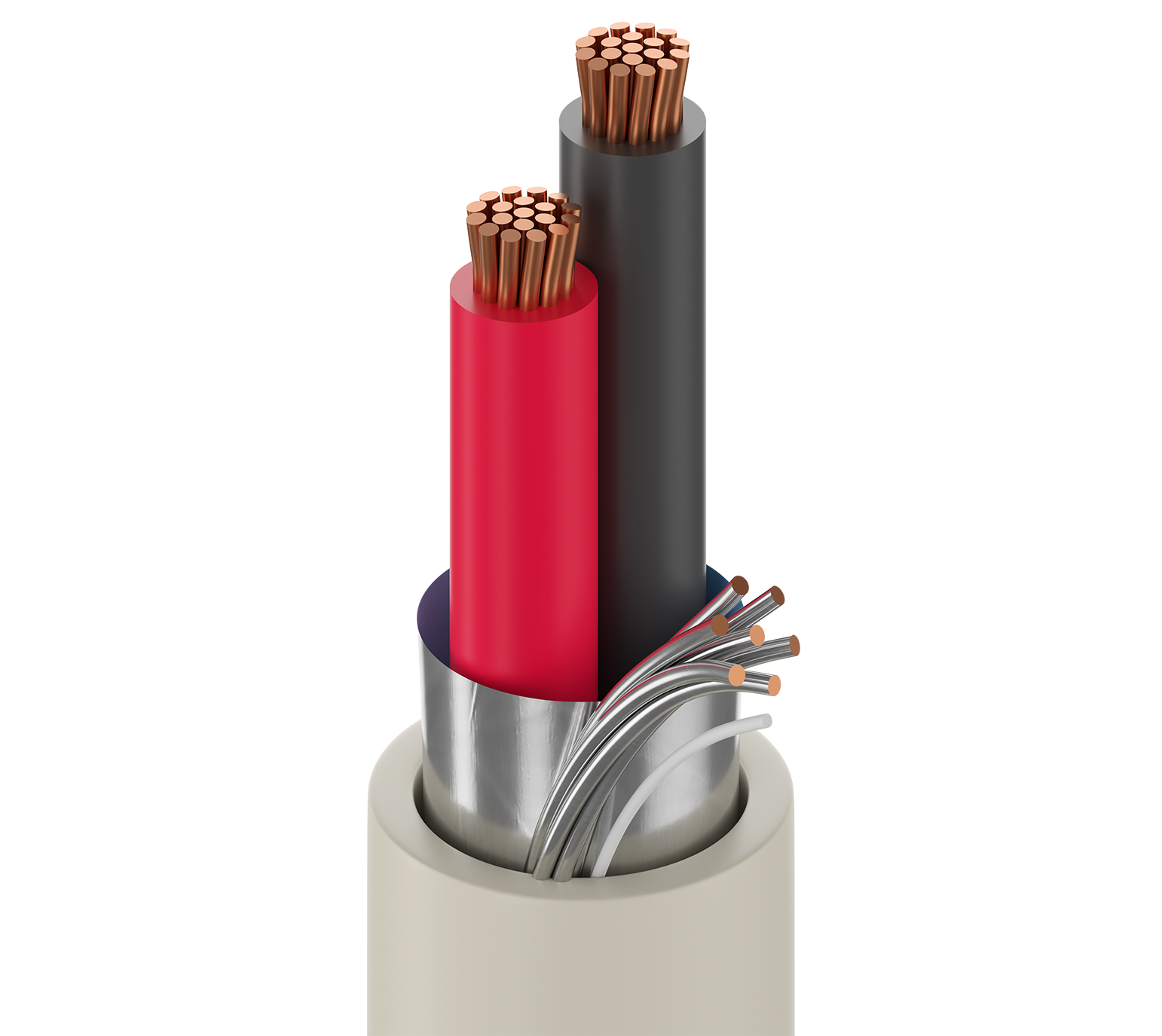

4200FE

Security & Sound, 2 Conductor 16 AWG BC, LSZH, Shielded, Eca

...
Security & Commercial Audio Cable, 2-16 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield, LSZH jacket with ripcord, CPR Eca
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Intercom/PA Systems, Sound/Audio Systems, Control Systems

Construction Details
Conductor
Size Stranding Material
16 19x29 BC - Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PP - Polypropylene 0.2 mm (0.0079 in) 1.8 mm (0.071 in) Black, Red
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.4 mm (0.016 in) 4.7 mm (0.19 in) Yes

Table Notes

Ripcord provided under sheath

Overall Cable Diameter (Nominal)

4.7 mm (0.19 in)

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
13.1 Ohm/km (3.99 Ohm/1000ft) 250 pF/m (76 pF/ft) 450 pF/m (140 pF/ft) 6.25 Amps per Conductor
Mechanical Characteristics
Temperature
Operating Installation Storage
-20°C To +70°C -20°C To +70°C -30°C To +70°C
Bend Radius
Installation Min.
47 mm (1.9 in)

Max. Pull Tension

200 N (45 lbf)

Standards and Compliance

Environmental Suitability

Indoor - Euroclass Eca, Non-Halogenated

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

ISO/IEC Compliance

IEC 61034-2 - Smoke Density Min Transmittance = 60%

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2)

UK Regulation Compliance

UKCA Mark

History

Update and Revision

Revision Number: 0.385 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
4200FE.00100 Gray, RAL 7032 Reel 100 m 8719605006295
4200FE.00500 Gray, RAL 7032 Reel 500 m 8719605006318
4200FE.001000 Gray, RAL 7032 Reel 1,000 m 8719605006301
