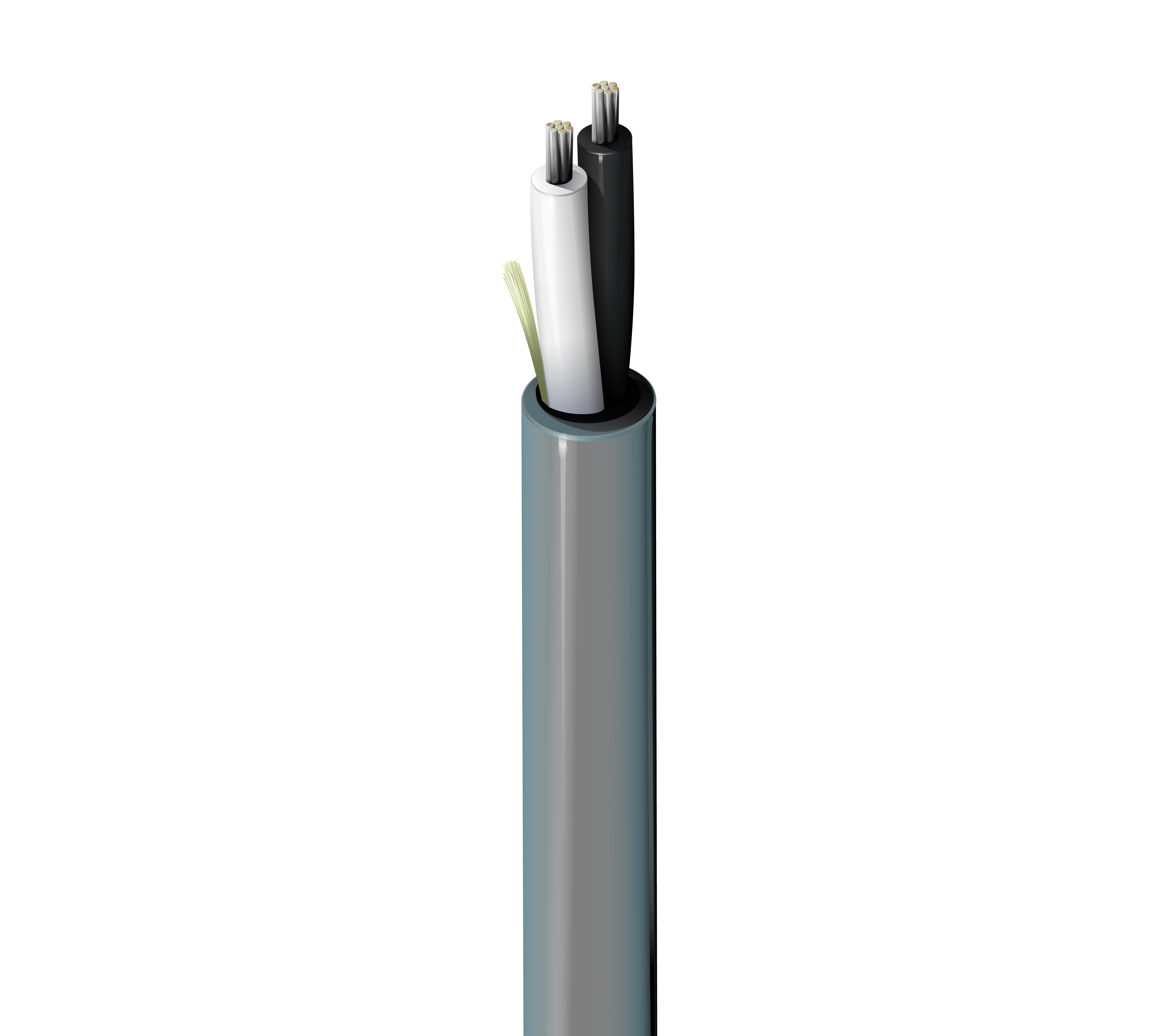

Product Number: 5000UE

Security & Sound, 2 Conductor 12 AWG, BC, Unshielded, CL3R-FPLR

Security & Commercial Audio Cable, Riser-CL3R-FPLR 2-12 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord

  • Availability:
    Global
  • Status:
    Active
5000UE
  • 5000UE
1 of 1

Specifications

Expand All

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Fire Alarm Systems (Red only)

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 2 12 AWG 19x25 BC - Bare Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP - Polypropylene 0.011 in (0.28 mm) 0.113 in (2.87 mm) Black, White

Outer Shield

Material
No Shield

Outer Jacket

Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.26 in (6.6 mm) Yes

Overall Cable Diameter (Nominal)

0.26 in (6.6 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Conductor(s) 1.6 Ohm/1000ft 24 pF/ft (79 pF/m) 30 Amps per conductor @ 30°C

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
75°C -20°C to +75°C

Bend Radius

Stationary Min. Installation Min.
2.6 in (66 mm) 2.6 in (66 mm)

Max. Pull Tension

152 lbs (68.9 kg)

Bulk Cable Weight

51 lbs/1000ft

Environmental Suitability

Indoor - Riser, Indoor

Flammability / Reaction to Fire

UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, Article 760, CL3R, FPLR

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

6000UE

Update and Revision

Revision Number: 0.518 Revision Date: 02-15-2024

Update and Revision

Revision Number: 0.518 Revision Date: 02-15-2024


Report An Error

Part Numbers

Item # Color Putup Type Length UPC Footnote
5000UE 010Z500 Black ReelTuff Box 500 ft 612825434085
5000UE 0101000 Black Reel 1,000 ft 612825154600 C
5000UE 010Z1000 Black ReelTuff Box 1,000 ft 612825432883
5000UE 010Z1000 Black ReelTuff Box 1,000 ft 612825432883
5000UE 0105000 Black Reel 5,000 ft 612825437864
5000UE 008500 Gray Reel 500 ft 612825154594 C
5000UE 008Z500 Gray ReelTuff Box 500 ft 612825434061
5000UE 0081000 Gray Reel 1,000 ft 612825336310 C
5000UE 008Z1000 Gray ReelTuff Box 1,000 ft 612825432869
5000UE 008Z1000 Gray ReelTuff Box 1,000 ft 612825432869
5000UE 0021000 Red Reel 1,000 ft 612825154587 C
5000UE 002Z1000 Red ReelTuff Box 1,000 ft 612825432852
5000UE 002Z1000 Red ReelTuff Box 1,000 ft 612825432852
