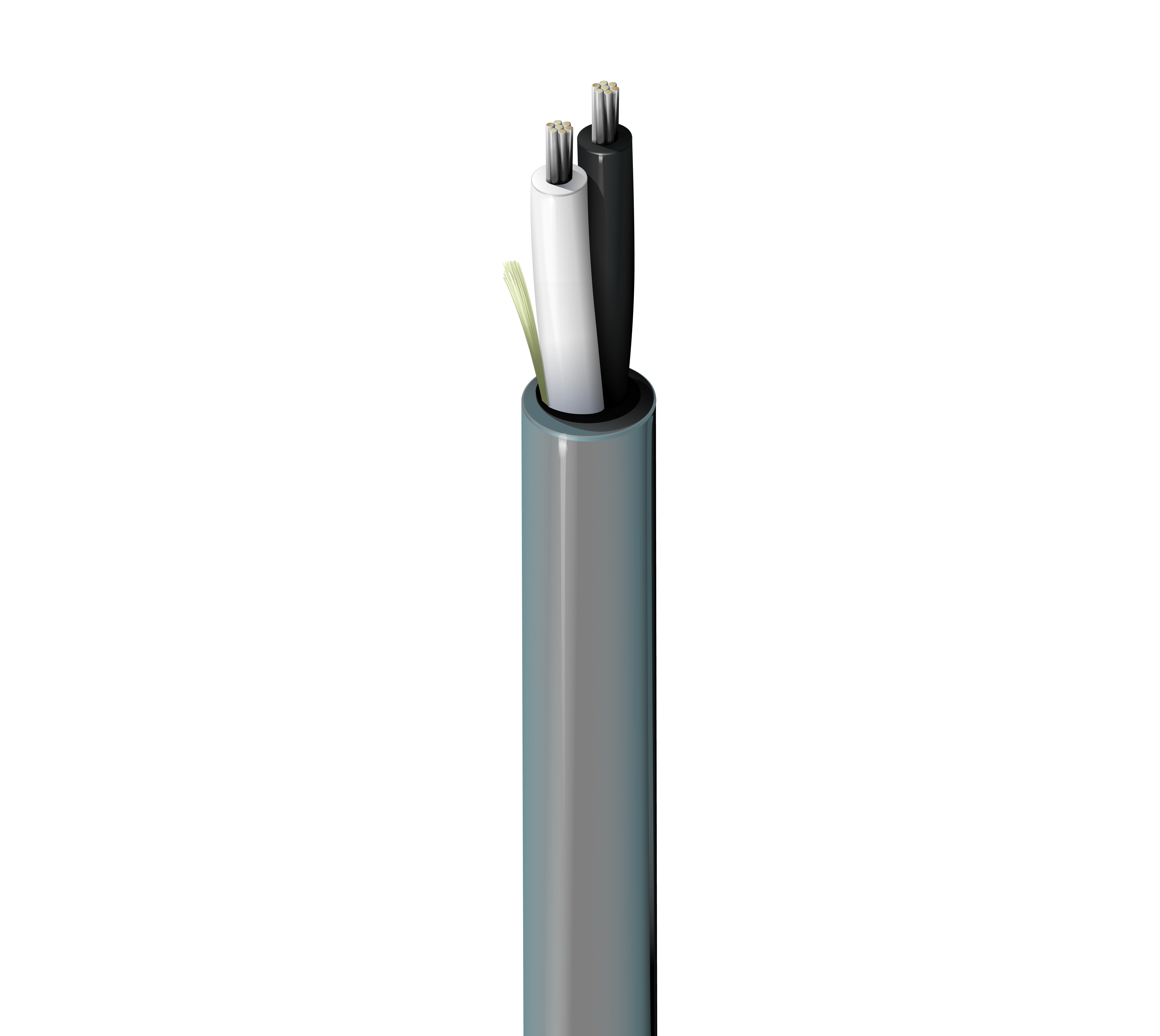

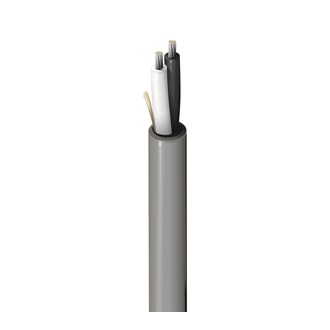

5100UE

Security & Sound, 2 Conductor 14 AWG, BC, CL3R, FPLR

...
Security & Commercial Audio Cable, Riser-CL3R-FPLR, 2-14 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Intercom/PA Systems, Sound/Audio Systems, Fire Alarm (For color Red only)(Dual Rated)

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 14 AWG 19x26 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP - Polypropylene 0.011 in (0.28 mm) 0.092 in (2.3 mm) Black, White
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.218 in (5.54 mm) Yes

Overall Cable Diameter (Nominal)

0.218 in (5.54 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Conductor(s) 2.53 Ohm/1000ft 22 pF/ft (72 pF/m) 25 Amps per conductor @ 30°C
Voltage
UL Voltage Rating
300 V (CL3R, FPLR)
Mechanical Characteristics
Temperature
UL Temperature Operating
75°C -20°C to +75°C
Bend Radius
Stationary Min. Installation Min.
2.2 in (56 mm) 2.2 in (56 mm)

Max. Pull Tension

95 lbs (43 kg)

Bulk Cable Weight

33 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor - Riser, Indoor

Flammability / Reaction to Fire

UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, Article 760, CL3R, FPLR

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

6100UH

History

Update and Revision

Revision Number: 0.519 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC/EAN Footnote
5100UE 0101000 Black Reel 1,000 ft 612825423324 C
5100UE 010Z1000 Black ReelTuff Box 1,000 ft 612825156369
5100UE.00152 Chrome Reel 152 m 8719605007742
5100UE.00305 Chrome Reel 305 m 8719605007759
5100UE.00U305 Chrome Reel 305 m 8719605007773
5100UE.00500 Chrome Reel 500 m 8719605007766
5100UE 008500 Gray Reel 500 ft 612825156314 C
5100UE 0081000 Gray Reel 1,000 ft 612825156338 C
5100UE 008U1000 Gray UnReel 1,000 ft 612825423317
5100UE 008Z1000 Gray ReelTuff Box 1,000 ft 612825156345
5100UE 0021000 Red Reel 1,000 ft 612825423300 C
5100UE 002Z1000 Red ReelTuff Box 1,000 ft 612825156321
