Product Number: 70045LV

Speaker Cable LSZH 2x1.5mm², CPR B2ca.

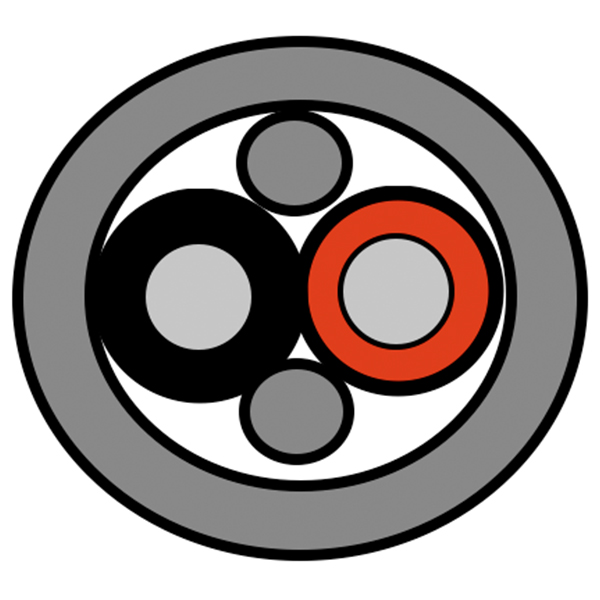

Speaker Cable, 2 Conductor 1.5mm² (30 x 0.25mm) Oxygen-Free Bare Copper (High Conductivity), LSZH Insulation, LSZH Jacket, Flexible, CPR Euroclass B2ca.

  • Availability:
    Global
  • Status:
    Active
70045LV
5 of 5

Specifications

Expand All

Suitable Applications

Speaker cable for use in indoor or outdoor applications

Conductor

Stranding Material
Stranded BC-OFHC - Oxygen-Free Bare Copper (High Conductivity)

Insulation

Material Nom. Insulation Diameter Color Code
LSZH - Low Smoke Zero Halogen (Flame Retardant) 2.30 mm (0.0906 in) Black, Red

Outer Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.80 mm

Outer Jacket1 Table Notes

Flexible with Matte Finish

Electricals

Max. Conductor DCR
13 Ohm/km

Temperature

Storage
-30°C to +70°C

Max. Pull Tension

200 N (45 lbf)

Environmental Suitability

Indoor/Outdoor - Euroclass B2ca

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: B2ca-s1,d1,a1

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

Update and Revision

Revision Number: 0.69 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.69 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
70045LV.00100 Black Reel 100 m 8719605163370
70045LV.00250 Black Reel 250 m 8719605163387
70045LV.00500 Black Reel 500 m 8719605163363
70045LV.01100 Gray Reel 100 m 8719605177643
70045LV.01250 Gray Reel 250 m 8719605177650
