Product Number: 8812WB

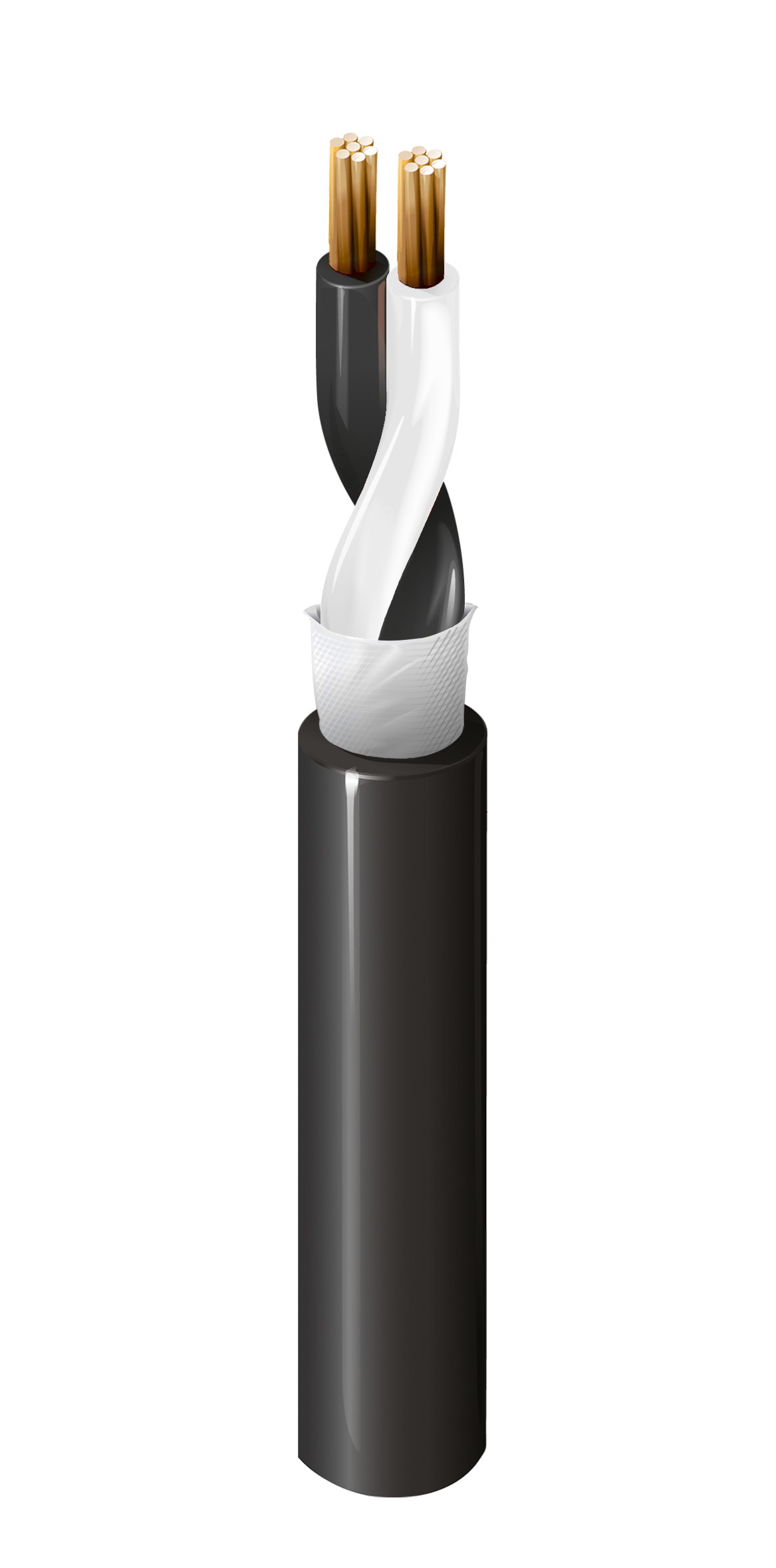

Speaker Cable, 2 Conductor 12 AWG BC, Unshielded, Waterblocked

2 Conductor 12 AWG stranded (19x25) bare copper conductors, PVC/Nylon insulation, PVC jacket.

  • Availability:
    Asia Pacific
  • Status:
    Active
8812WB
  • 8812WB
1 of 1

Specifications

Expand All

Suitable Applications

AUDITORIUM , STADIUM , RACE TRACK , CHURCH , TEMPLE , SYNAGOGUE , PLACE OF ASSEMBLY , CASINO , SOUND

Conductor

Size Stranding Material
12 19x25 BC - Bare Copper

Insulation

Material Color Code
PVC - Polyvinyl Chloride Black, White
Nylon

Outer Shield

Material
No Shield

Outer Jacket

Separator Material Nom. Diameter
Waterblocking Tape PVC - Polyvinyl Chloride 0.403 in

Voltage

UL Voltage Rating
600 V

Temperature

Operating
-30°C To +75°C Wet; -30°C To +90°C Dry

Max. Pull Tension

170 lbs (77 kg)

Bulk Cable Weight

94 lbs/1000ft (140 kg/km)

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial

Flammability / Reaction to Fire

UL1581 Vertical Tray, 1202

NEC / UL Compliance

NPLF, TC, THHN/THWN Singles

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.42 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.42 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

Part Numbers

Item # Color Putup Type Length
8812WB 0101000 Black Reel 1,000 ft
