Product Number: 83242

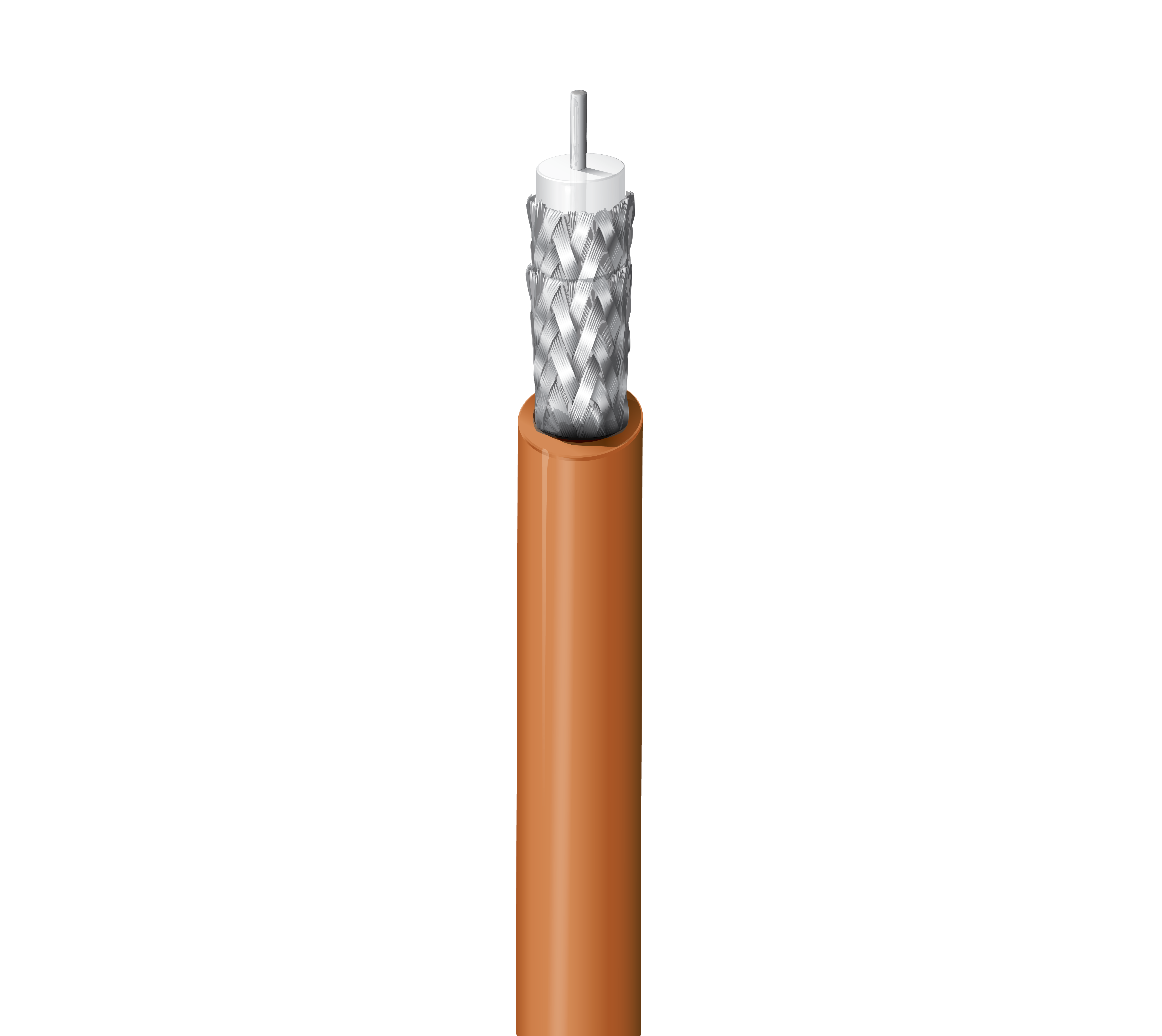

Mil-Spec Coax, 50 Ohm, RG-142, 19 AWG Solid SCCS, Double 95% SC Braid, FEP Jkt, CMP, Commercial Non-QPL
Mil-Spec Coax, 50 Ohm, RG-142, 19 AWG Solid Silvered Copper Covered Steel Conductor, PTFE Insulation, Double 95% Silvered Copper Braid Shield, FEP Jacket, CMP, Commercial, non-QPL
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Aerospace wireless communication |
|---|
Construction Details
|
RG Type |
142 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 19 AWG | Solid | 0.037 in | SCCS - Silvered Copper Covered Steel |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PTFE - Polytetrafluoroethylene | 0.116 in (2.95 mm) | White |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Silvered Copper (SC) | 95% |
| 2 | Braid | Silvered Copper (SC) | 95% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| FEP - Fluorinated Ethylene Propylene | 0.195 in (4.95 mm) |
|
Overall Cable Diameter (Nominal) |
0.195 in (4.95 mm) |
|---|
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 10 MHz | 1.1 dB/100ft |
| 50 MHz | 2.6 dB/100ft |
| 100 MHz | 3.8 dB/100ft |
| 200 MHz | 5.6 dB/100ft |
| 400 MHz | 6.9 dB/100ft |
| 700 MHz | 10.7 dB/100ft |
| 900 MHz | 12.3 dB/100ft |
| 1000 MHz | 13.1 dB/100ft |
| 2000 MHz | 19.3 dB/100ft |
| 3000 MHz | 24.2 dB/100ft |
| 5000 MHz | 32.6 dB/100ft |
| 8000 MHz | 43.2 dB/100ft |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 19.0 Ohm/1000ft | 2.3 Ohm/1000ft (7.5 Ohm/km) | 29 pF/ft (95 pF/m) | 50 Ohm | 70% |
Voltage
| UL Voltage Rating | Voltage Rating |
|---|---|
| 300 V (CMP) | 1400 V (Mil-Spec) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 200°C | -70°C to +200°C |
Bend Radius
| Installation Min. |
|---|
| 2 in (51 mm) |
|
Max. Pull Tension |
103 lbs (46.7 kg) |
|---|---|
|
Bulk Cable Weight |
42 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor - Plenum, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
NFPA 262 |
|
NEC / UL Compliance |
CMP |
|
CEC / C(UL) Compliance |
CMP |
|
Military Compliance |
Commercial, non-QPL product (M17/158-00001) |
|
European Directive Compliance |
REACH |
History
|
Update and Revision |
Revision Number: 0.513 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.513 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 83242 001100 | Brown | Reel | 100 ft | 612825203612 | C E |
| 83242 001500 | Brown | Reel | 500 ft | 612825203650 | C E |
| 83242 0011000 | Brown | Reel | 1,000 ft | 612825203629 | C E |
