Product Number: MRG5802

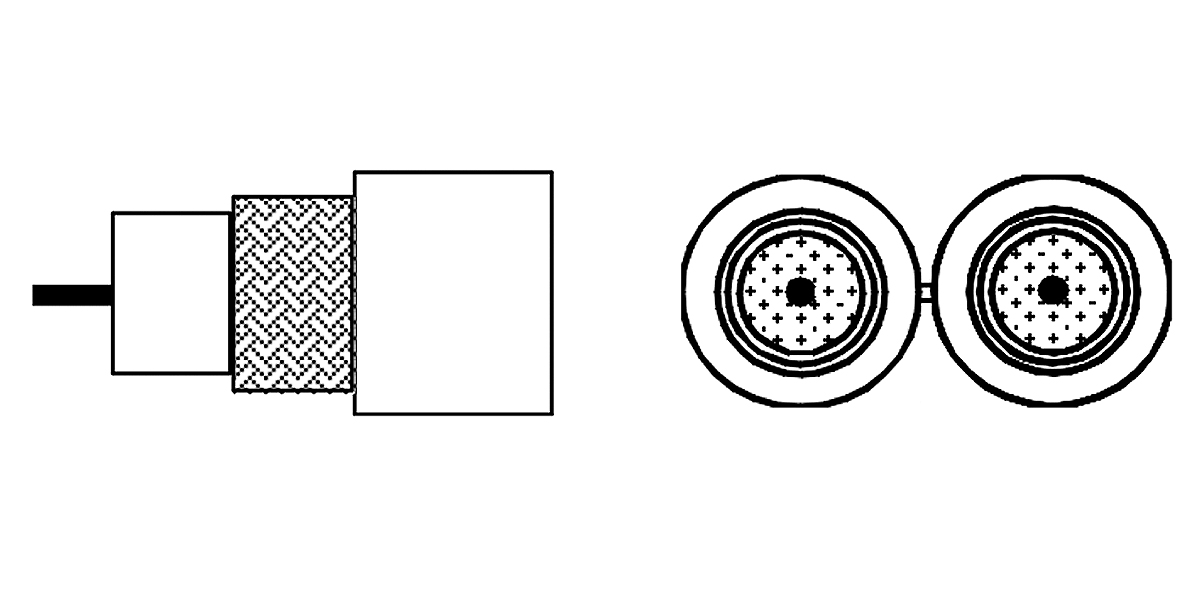

MRG5802 - Mil-Spec Coax, 50 Ohm, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt, Commercial, Twin-coax
Mil-Spec Coax, 50 Ohm, RG-58, 20 AWG (19x33) Tinned Copper Conductor, PE Insulation, 95% Tinned Copper Braid Shield, PVC Jacket, Commercial, Twin-coax
-
Availability:
EMEA | Asia Pacific
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
|---|
Construction Details
|
RG Type |
58 |
|---|
Conductor
| No. of Elements | Size | Stranding | Material |
|---|---|---|---|
| 2 | 21 AWG | Stranded | TC - Tinned Copper |
Insulation
| Material | Nom. Insulation Diameter |
|---|---|
| PE - Polyethylene | 2.95 mm (0.116 in) |
Outer Shield
| Outer Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 93% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 4.95 mm |
|
Table Notes |
Shotgun construction, width 9.9 mm (0.3898 in) |
|---|
Electrical Characteristics
|
Regularity of Impedance |
Min. 40 dB |
|---|
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 5 - 30 MHz | 20 dB |
| 30 - 470 MHz | 20 dB |
| 470 - 1000 MHz | 18 dB |
|
Table Notes |
In each frequency band, 3 peak values up to 4 dB lower are allowed |
|---|
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 10 MHz | 4.7 dB/100m |
| 200 MHz | 23 dB/100m |
| 400 MHz | 34 dB/100m |
| 1000 MHz | 60 dB/100m |
|
Table Notes |
Max. attenuation 10% higher |
|---|
Electricals
| Max. Conductor DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|
| 40.6 Ohm/km (12.4 Ohm/1000ft) | 100 pF/m (30 pF/ft) | 50 Ohm | 66% |
Voltage
| Voltage Rating |
|---|
| 4000 V DC / 2000 V RMS |
Mechanical Characteristics
Temperature
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +50°C | -40°C To +70°C |
Bend Radius
| Stationary Min. |
|---|
| 25 mm (0.98 in) |
|
Bulk Cable Weight |
75 kg/km |
|---|
Standards and Compliance
|
Environmental Suitability |
Indoor - Euroclass Eca |
|---|---|
|
Flammability / Reaction to Fire |
IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
Military Compliance |
MIL-C-17 |
|
CENELEC Compliance |
EN 50289 |
|
UK Regulation Compliance |
UKCA Mark |
History
|
Update and Revision |
Revision Number: 0.195 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.195 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| MRG5802.00500 | Black | Reel | 500 m | 8719605103277 |
