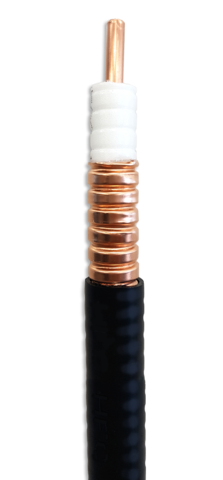

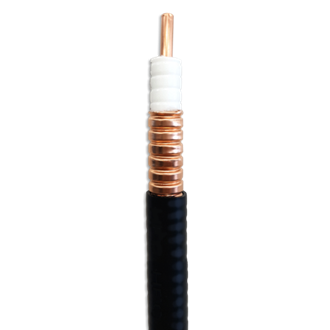

Product Number: RA500

Low Loss ½” Coaxial Cables

DAS Coax, 1/2 Inch Low Loss Foam Dielectric, Corrugated Copper Outer Conductor, UV Resistant PE Jacket

  • Availability:
    Global
  • Status:
    Active
RA500
  • RA500
1 of 1

Specifications

Expand All

Suitable Applications

Active and passive distributed antenna systems (DAS). 4G LTE, LTE Advanced (LTE-A) and LTE Advanced Pro with Licensed Assisted Access (LAA). Public safety emergency responder radio communications systems (ERRCS). CBRS/private LTE networks

Conductor

Size Stranding Nom. Diameter Material
5 Solid 0.190 in BCCA - Bare Copper Covered Aluminum

Insulation

Material Nom. Insulation Diameter
PE - Polyethylene (Foam) 0.480 in (12.2 mm)

Outer Shield

Material Coverage
Bare Copper (BC) 100%

Outer Jacket

Material Nom. Diameter
PE - Polyethylene 0.626 in

VSWR

Frequency Max. VSWR
700-894 MHz 1.15
806-960 MHz 1.15
1700-2700 MHz 1.15
2700-3555 MHz 1.2
3700-4200 MHz 1.25

Attenuation

Frequency Nom. Attenuation
5 MHz 0.35 dB/100ft
30 MHz 0.36 dB/100ft
100 MHz 0.66 dB/100ft
150 MHz 0.81 dB/100ft
450 MHz 1.44 dB/100ft
700 MHz 1.80 dB/100ft
824 MHz 1.98 dB/100ft
890 MHz 2.04 dB/100ft
894 MHz 2.06 dB/100ft
960 MHz 2.16 dB/100ft
1000 MHz 2.19 dB/100ft
1700 MHz 2.93 dB/100ft
1800 MHz 3.02 dB/100ft
2000 MHz 3.20 dB/100ft
2300 MHz 3.46 dB/100ft
2400 MHz 3.54 dB/100ft
2700 MHz 3.78 dB/100ft
3000 MHz 4.02 dB/100ft
3400 MHz 4.33 dB/100ft
3500 MHz 4.39 dB/100ft
4000 MHz 4.82 dB/100ft
5000 MHz 5.41 dB/100ft
6000 MHz 5.93 dB/100ft

Power Rating

Frequency Max. Power Rating
30 MHz 6,190 W
150 MHz 2,740 W
700 MHz 1,240 W
890 MHz 1,100 W
960 MHz 1,050 W
1,000 MHz 1,030 W
1,800 MHz 760 W
2,000 MHz 720 W
3,000 MHz 580 W
4,000 MHz 490 W
5,000 MHz 440 W
6,000 MHz 390 W

Electricals

Nom. Conductor DCR Nom. Characteristic Impedance Nom. Velocity of Prop.
0.5 Ohm/1000ft (1.6 Ohm/km) 50 Ohm 88%

Voltage

Voltage Rating
4000 VDC

Temperature

Operating
-30°C to +80°C

Max. Pull Tension

249 lbs (113 kg)

Bulk Cable Weight

138 lbs/1000ft (205 kg/km)

Environmental Suitability

Outdoor, Aerial - Black only, When supported by messenger wire

Plenum Number

RA500P

Non-Plenum Number

RA500R

Update and Revision

Revision Number: 0.113 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.113 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length
RA500 0101000 Black Reel 1,000 ft
RA500 0103000 Black Reel 3,000 ft
