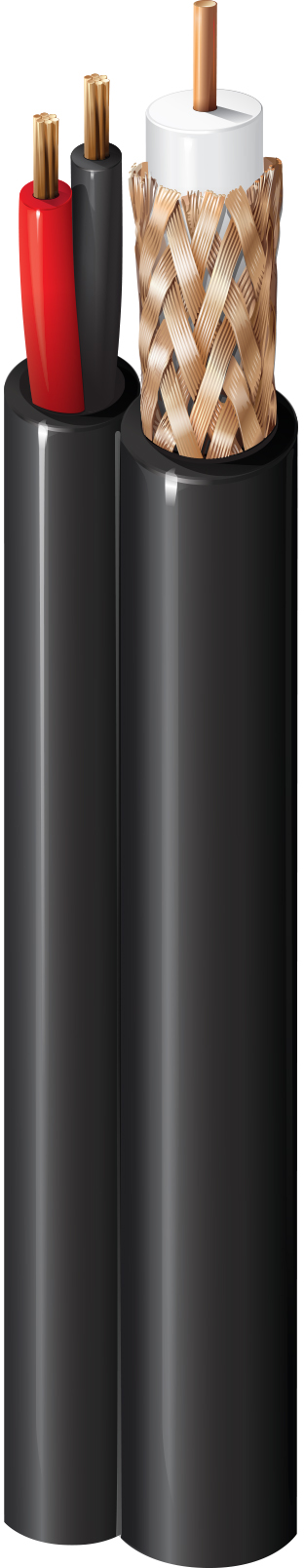

Product Number: 439945

PTZ, RG-6 #18, #18-2c ,LSZH, Siamese, Eca

PTZ (CCTV + Power/Audio) Cable), Coax RG-6, 18 AWG solid bare copper, foamed polyethylene core, 95% bare copper braid, LSZH jacket

  • Availability:
    Global
  • Status:
    Active
439945
5 of 5

Specifications

Expand All

Suitable Applications

Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)

RG Type

6

Conductor

Element No. of Elements Size Stranding Nom. Diameter Material
Coax(es) 1 18 AWG Solid 1.02 mm BC - Bare Copper
Pair1 18 AWG 7x26 1.17 mm BC - Bare Copper

Insulation

Element Material Nom. Insulation Diameter
Coax(es) PE - Polyethylene (Foam) 4.57 mm (0.180 in)
Twisted Pair(s) PE - Polyethylene 1.7 mm (0.067 in)

Inner Shield

Element Shield Type Material Coverage
Coax(es) Braid Bare Copper (BC) 95%

Outer Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.8 mm (0.27 in)

Attenuation

Frequency Nom. Attenuation
1 MHz 0.56 dB/100m
5 MHz 1.48 dB/100m
10 MHz 2.1 dB/100m
50 MHz 4.79 dB/100m
100 MHz 6.89 dB/100m
200 MHz 9.84 dB/100m
400 MHz 14.1 dB/100m
700 MHz 19 dB/100m
900 MHz 22 dB/100m
1000 MHz 23.3 dB/100m

Electricals

Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
6.52 Ohm/1000ft 10.2 Ohm/km (3.11 Ohm/1000ft) 53.4 pF/m (16.3 pF/ft) 75 Ohm 83%
21 Ohm/km (6.4 Ohm/1000ft)

Temperature

Operating Storage
-30°C To +70°C -30°C To +70°C

Max. Pull Tension

52 N (12 lbf)

Environmental Suitability

Indoor/Outdoor - Euroclass Eca

CPR Compliance

CPR Euroclass: Eca

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.257 Revision Date: 02-20-2026

Update and Revision

Revision Number: 0.257 Revision Date: 02-20-2026


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
439945.00100 Gray Reel 100 m 8719605006899
439945.00500 Gray Reel 500 m 8719605006905
