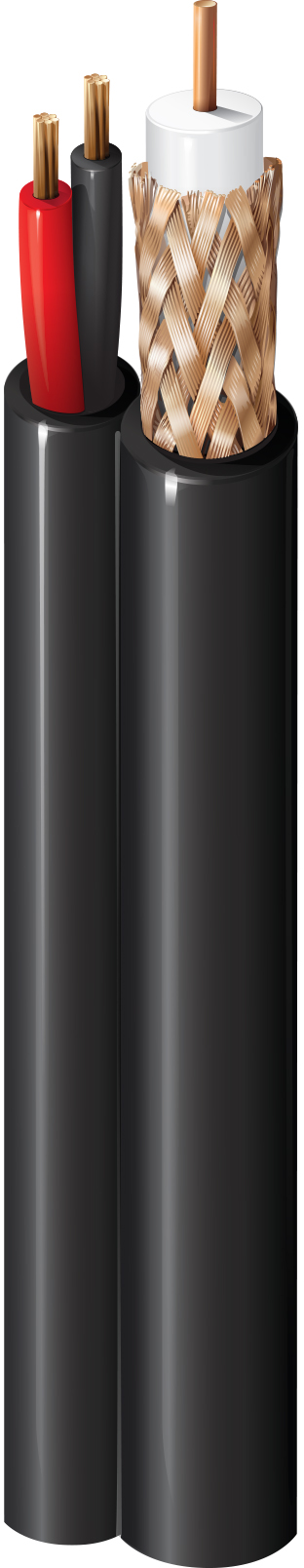

Product Number: 649948
PTZ, RG-59 #20, #18-2c, CMP, Siamese
PTZ (CCTV + Power/Audio) Cable, Plenum-CMP, 1-RG59 20 AWG solid bare copper with foam FEP, 95% bare copper braid, 1-18 AWG stranded bare copper pair with Flamarrest® insulation, Siamese with Flamarrest® jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom) |
|---|
Physical Characteristics (Overall)
Conductor
| Element | AWG | Stranding | Material | Nominal Diameter | No. of Conductors | No. of Coax |
|---|---|---|---|---|---|---|
| Coax(es) | 20 | Solid | BC - Bare Copper | 1 | ||
| Pair1 | 18 | 7x26 | BC - Bare Copper | 0.047 in | 2 |
|
Conductor Count |
3 |
|---|
Insulation
| Element | Material | Nominal Diameter |
|---|---|---|
| Coax(es) | PE - Polyethylene (Foam) | 0.133 in |
| Pair1 | PVC - Polyvinyl Chloride | 0.062 in |
|
Table Notes |
Gas Injected |
|---|
Color Chart
| Number | Color |
|---|---|
| Coax Core | White |
| Pair1 | Black & Red |
Inner Shield
| Element | Type | Material | Coverage [%] |
|---|---|---|---|
| Coax(es) | Braid | Bare Copper (BC) | 95% |
| Pair1 | No Shield |
Inner Jacket
| Nominal Diameter |
|---|
| 0.192 in |
Outer Jacket
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.192 in x 0.383 in |
Electrical Characteristics
Conductor DCR
| Element | Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Inner Shield DCR | Outer Conductor DCR |
|---|---|---|---|---|
| Coax(es) | 10 Ohm/1000ft | 10 Ohm/1000ft | 2.5 Ohm/1000ft | 2.5 Ohm/1000ft |
| Pair1 |
Capacitance
| Element | Nom. Capacitance Conductor to Conductor |
|---|---|
| Coax(es) | 16.1 pF/ft |
| Pair1 |
Impedance
| Element | Nominal Characteristic Impedance |
|---|---|
| Coax(es) | 75 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | .29 dB/100ft |
| 5 MHz | 0.7 dB/100ft |
| 10 MHz | 1.1 dB/100ft |
| 50 MHz | 1.8 dB/100ft |
| 100 MHz | 2.7 dB/100ft |
| 200 MHz | 3.9 dB/100ft |
| 400 MHz | 5.9 dB/100ft |
| 700 MHz | 8.5 dB/100ft |
| 900 MHz | 10 dB/100ft |
| 1000 MHz | 10.7 dB/100ft |
Delay
| Element | Max. Delay Skew | Nominal Delay |
|---|---|---|
| Coax(es) | 84 ns/100m | 1.21 ns/ft |
Current
| Element |
|---|
| Coax(es) |
| Pair1 |
Temperature Range
|
Installation Temperature Range |
0°C To +75°C |
|---|---|
|
UL Temp Rating |
75°C |
|
Operating Temperature Range |
0°C To +75°C |
|
Separation Temp Range |
0°C To +75°C |
Mechanical Characteristics
|
Bulk Cable Weight |
45 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
75 lbs |
Standards
|
NEC Articles |
Article 800 |
|---|---|
|
NEC/(UL) Compliance |
CMP |
|
CEC/C(UL) Compliance |
CMP |
|
CPR Euroclass |
Eca |
|
RG Type |
59 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Plenum |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
Yes |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Burial |
No |
|---|---|
|
Suitability - Hazardous Locations |
No |
|
Suitability - Indoor |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
NFPA 262 |
|---|---|
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
Yes |
|---|
Related Part Numbers
|
Non-Plenum Number |
549945 |
|---|---|
|
Footnote |
C - CRATE REEL PUT-UP. |
Product Notes
|
Notes |
18 AWG pair is unshielded |
|---|
History
|
Update and Revision |
Revision Number: 0.527 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.527 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 649948 877500 | Natural | Reel | 500 ft | 612825177074 |
| 649948 8771000 | Natural | Reel | 1,000 ft | 612825177067 |
