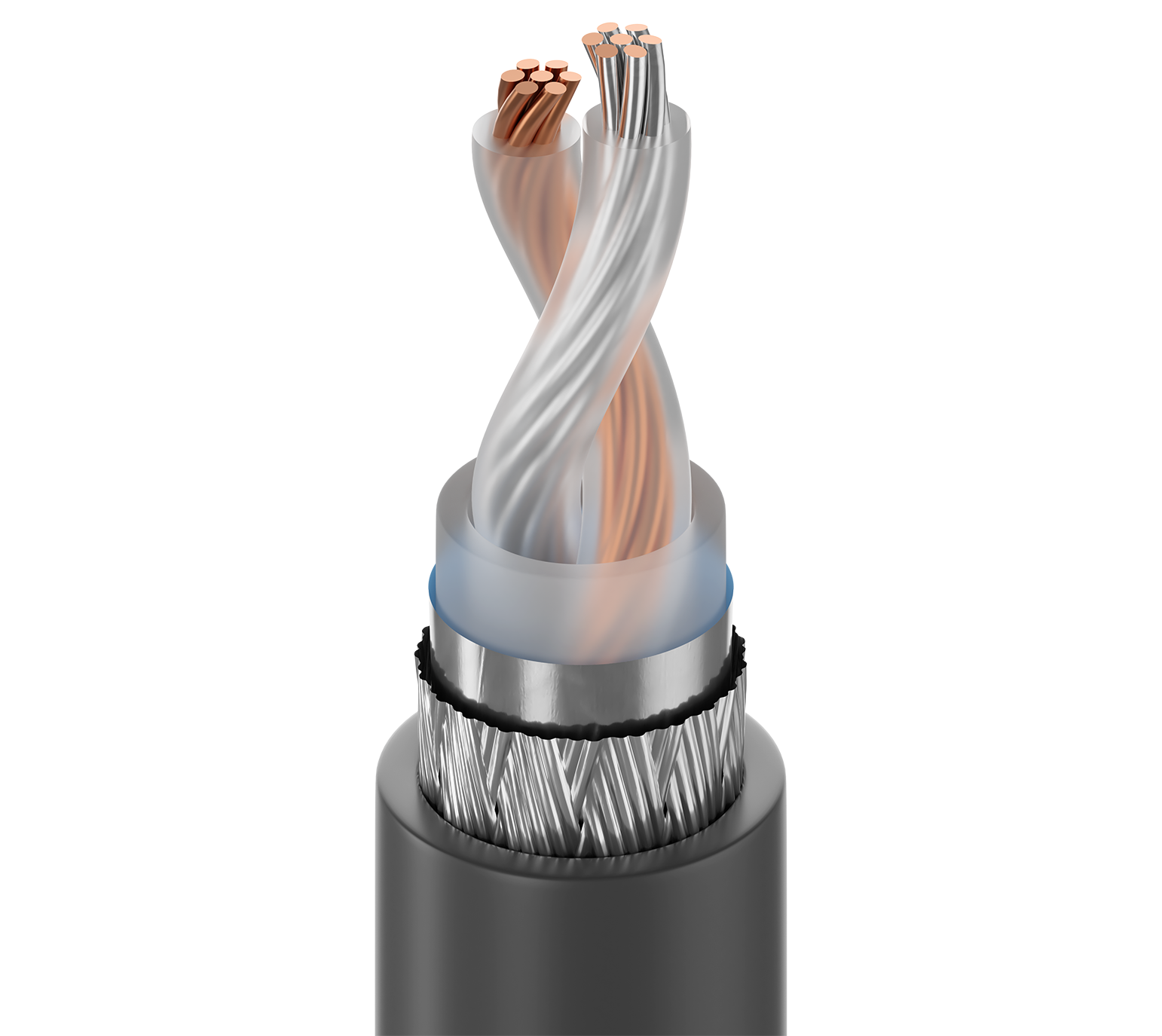

89207

100Ω Twinax, 1 Pr #20 Str-1c TC/1c BC, FEP ins, FEP Inner Jkt, Duofoil®+TC Braid, FEP Jkt, CMP

...
Twinax 100Ω, 1 Pair, 20 AWG (7x28) one tinned, one bare copper conductor, FEP insulation, FEP inner jacket, Duofoil® + tinned copper braid shield 85%, FEP jacket, CMP
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Computer, Instrumentation

Construction Details
Conductor
Size Stranding Nom. Diameter Material
20 AWG 7x28 0.036 in TC - Tinned Copper
20 AWG 7x28 0.036 in BC - Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code Notes
FEP - Fluorinated Ethylene Propylene 0.072 in (1.8 mm) Clear FEP on both conductors
FEP - Fluorinated Ethylene Propylene 0.201 in (5.11 mm) Clear FEP over pair
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
2 Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nom. Diameter
FEP - Fluorinated Ethylene Propylene 0.259 in (6.58 mm)

Overall Cable Diameter (Nominal)

0.259 in (6.58 mm)

Electrical Characteristics
Attenuation
Frequency Nom. Attenuation
1 MHz 0.30 dB/100m
10 MHz 1.20 dB/100m
50 MHz 2.80 dB/100m
100 MHz 4.10 dB/100m
200 MHz 6.40 dB/100m
300 MHz 8.40 dB/100m
400 MHz 10.20 dB/100m
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Cond (Mutual) Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
9.5 Ohm/1000ft 2.5 Ohm/1000ft (8.2 Ohm/km) 14.0 pF/ft (45.9 pF/m) 23.0 pF/ft (75.5 pF/m) 100 Ohm 70%
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
UL Temperature Operating
200°C -70°C to +200°C
Bend Radius
Installation Min.
3.0 in (76 mm)

Max. Pull Tension

88 lbs (40 kg)

Bulk Cable Weight

52 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor - Plenum, Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

NFPA 262

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

9207

History

Update and Revision

Revision Number: 0.490 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
89207 010100 Black Reel 100 ft 612825220756 C
89207 010500 Black Reel 500 ft 612825220770 C
89207 0101000 Black Reel 1,000 ft 612825220763 C
