Product Number: 9V28010

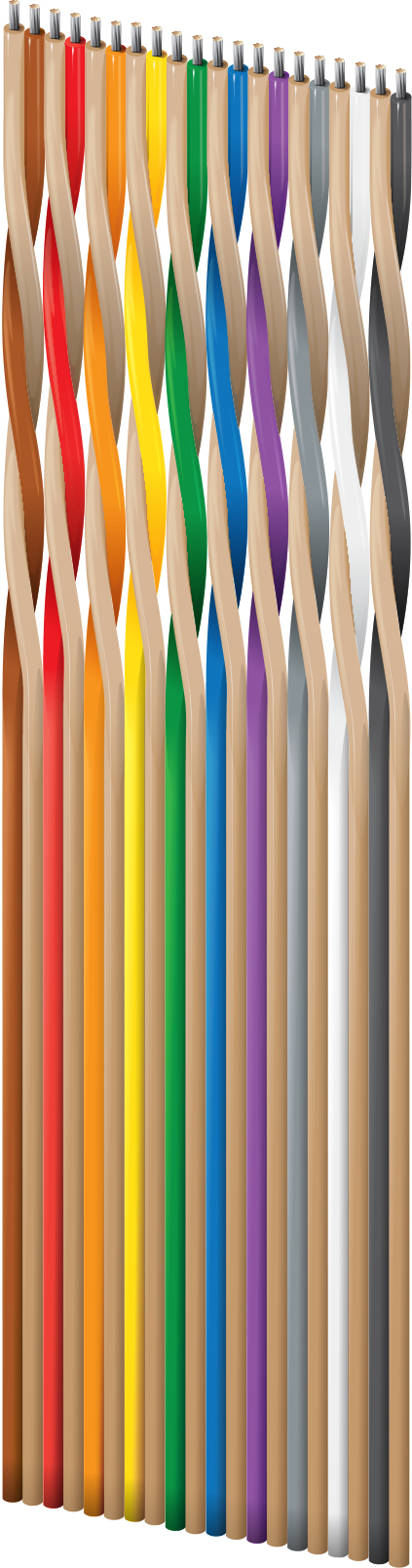

Flat Vari-Twist Cable .050" Pitch, 9V280XX Series, #28-10c, PVC Ins on PVC Substrate

Flat Vari-Twist Cable .050" Pitch, 9V280XX Series, 10 Conductors, 28 AWG (7x36) Tinned Copper, PVC Insulated Conductors on PVC Substrate

  • Availability:
    Global
  • Status:
    Active
9V28010
5 of 5

Specifications

Expand All

Suitable Applications

Internal interconnection, internal wiring of electronic equipment, reduced crosstalk in balanced mode, can be mass-terminatable in flat sections with standard IDC connectors

Conductor

Size Stranding Material
28 7x36 TC - Tinned Copper

Insulation

Material Nom. Thickness Color Code
PVC - Polyvinyl Chloride 0.010 in (0.25 mm) Brown/Tan, Red/Tan, Orange/Tan, Yellow/Tan, Green/Tan

Conductor Spacing Center-Center Outside

.450 +/- .015 in

Conductor Spacing Center-Center Flat Section

.050 +/- .005 in

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Nom. Delay Nom. Inductance Nom. Velocity of Prop. Max. Current
68.2 Ohm/1000ft (224 Ohm/km) 20 pF/ft (66 pF/m) 115 Ohm 1.6 ns/ft 0.24 µH/ft (0.79 µH/m) 64% 1 Amp per Conductor at 20ºC
16 pF/ft (52 pF/m) 100 Ohm

Balanced Crosstalk

Description Start Frequency [MHz] Start Frequency [MHz] dB Suppression
10 ft. sample length 10 MHz 100 MHz 35 dB

Unbalanced Crosstalk

Element Typical Unbalanced NEXT % Typical Unbalanced FEXT % Typical Cross Talk Pulse Rise Time
10 ft. sample length all grounds connected together. 5.8 5.2 3 ns
10 ft. sample length all grounds connected together. 4 3.2 5 ns
10 ft. sample length all grounds connected together. 2.5 2.8 7 ns

High Frequency (Nominal/Typical)

Frequency [MHz] Nom. Insertion Loss (Attenuation)
10 3.5 dB/100ft
20 5.5 dB/100ft
30 7.2 dB/100ft
40 8.8 dB/100ft
50 10.2 dB/100ft
60 12 dB/100ft
70 13 dB/100ft
80 14.2 dB/100ft
90 15 dB/100ft
100 16 dB/100ft

High Frequency Table (Nominal/Typical) Notes

18" of twisted pairs and 2" of flat section. The transition area is included in the twisted length to assure a full 2 inches of flat termination area.

Voltage

UL Voltage Rating
300 V

Temperature

Operating
-20°C to +105°C

Bend Radius

Installation Min.
4.5 in

Bulk Cable Weight

25 lbs/1000ft (37 kg/km)

Environmental Suitability

Indoor

Flammability / Reaction to Fire

VW-1

AWM Compliance

AWM 2693, AWM 2697

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.296 Revision Date: 09-07-2025

Footnote

E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.

Update and Revision

Revision Number: 0.296 Revision Date: 09-07-2025

Footnote

E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.

Report An Error

Part Numbers

Item # Color Length UPC Footnote
9V28010 000H100 None 100 ft 612825222118 E
