Product Number: 37104

Lead Wire, #4 Str TC, EPDM Ins, AWM 3340 AWM 3374

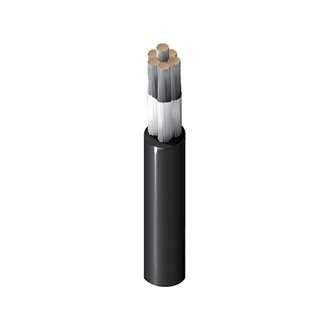

Rubber Lead Wire, 4AWG (105x24) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX

  • Availability:
    Global
  • Global inventory:
    Available
37104
  • 37104
1 of 1

Specifications

Report An Error

Suitable Applications

Class 130(B), 155(F) and also in some 180(H) motor lead systems, high temperature, internal wiring of appliances

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 1 4 AWG 105x24 TC - Tinned Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter
EPDM - Ethylene Propylene Diene Monomer 0.084 in (2.1 mm) 0.432 in (11.0 mm)

Overall Cable Diameter (Nominal)

0.432 in (11.0 mm)

Electricals

Nom. Conductor DCR Max. Current
0.279 Ohm/1000ft 192 Amps per Conductor at 30ºC

Voltage

UL Voltage Rating
600 V (AWM 3340, AWM 3374)

Temperature

UL Temperature Operating
150°C -55°C To +150°C

Bend Radius

Stationary Min. Installation Min.
4.32 in (110 mm) 4.32 in (110 mm)

Max. Pull Tension

532 lbs (241 kg)

Recommended Max Baking Cycles

24 Hours @ 300°F (149°C) ~ 4 Hours @ 375°F (190°C)

Bulk Cable Weight

187 lbs/1000ft

Environmental Suitability

Indoor, Outdoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

Horizontal flame

AWM Compliance

AWM 3340, AWM 3374

CEC / C(UL) Compliance

CL-1254

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Separator Material over Conductor: Y,

Update and Revision

Revision Number: 0.489 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.489 Revision Date: 02-03-2025

Part Numbers

Item # Color Putup Type Length UPC Footnote
37104 010100 Black Reel 100 ft 612825146704 C
37104 010250 Black Reel 250 ft 612825146728 C F
37104 010500 Black Reel 500 ft 612825146735 C F
37104 0101000 Black Reel 1,000 ft 612825146711 C
