Lead Wire, #1 Str TC, EPDM Ins, AWM 3499

...

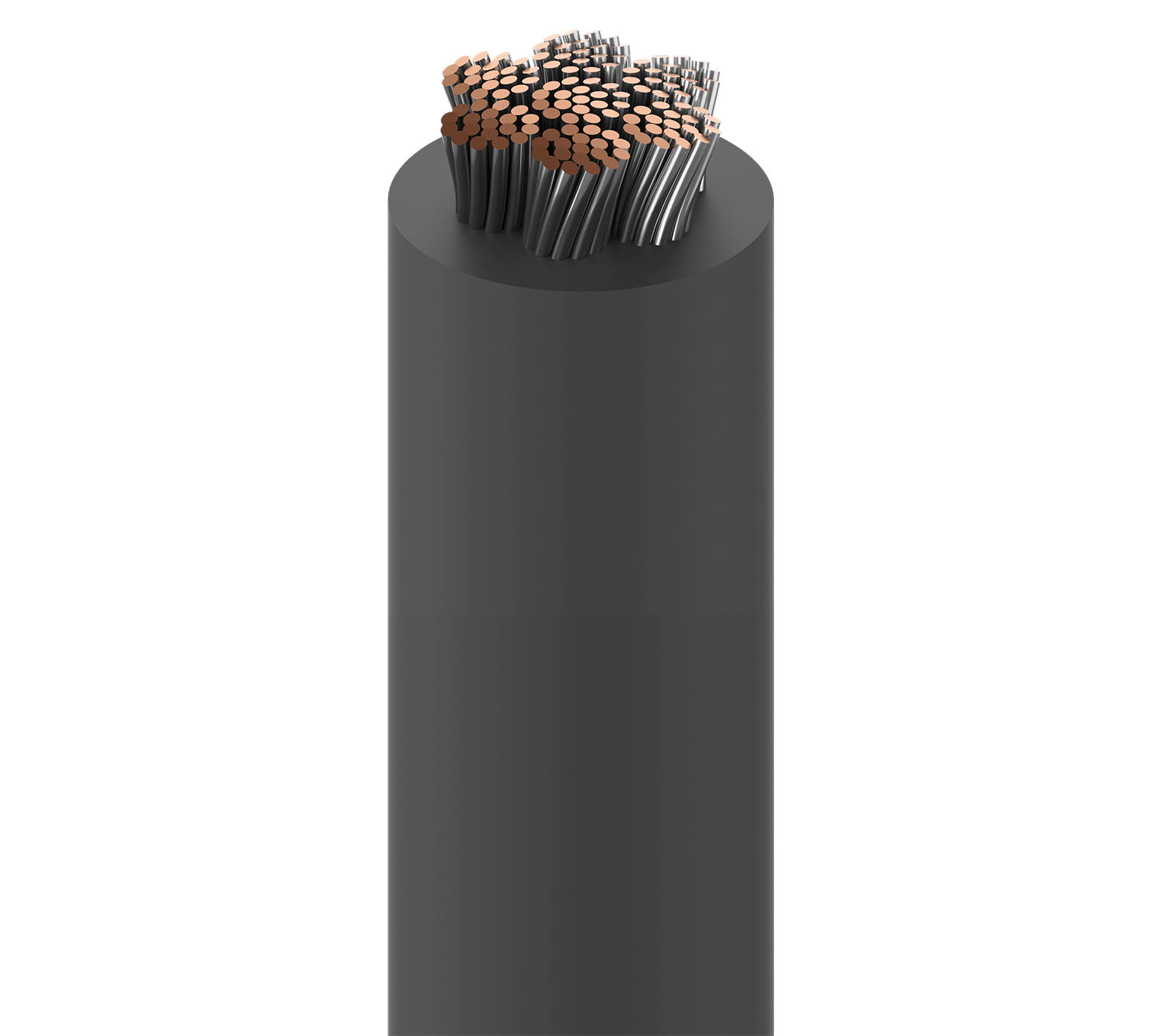

Rubber Lead Wire, 1AWG (210x24) Tinned Copper, EPDM Insulation, AWM 3499 7500V 150C
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

internal wiring of appliances, high voltage and high temperature applications

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 1 AWG 210x24 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
EPDM - Ethylene Propylene Diene Monomer 0.131 in (3.33 mm) 0.638 in (16.2 mm)

Overall Cable Diameter (Nominal)

0.638 in (16.2 mm)

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
0.143 Ohm/1000ft 297.6 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
7500 V (AWM 3499)
Mechanical Characteristics
Temperature
UL Temperature Operating
150°C -55°C To +150°C
Bend Radius
Stationary Min. Installation Min.
6.38 in (162 mm) 6.38 in (162 mm)

Max. Pull Tension

1085 lbs (492.1 kg)

Recommended Max Baking Cycles

24 Hours @ 300°F (149°C) ~ 4 Hours @ 375°F (190°C)

Bulk Cable Weight

391 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

Horizontal flame

AWM Compliance

AWM 3499

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Separator material over conductor.

History

Update and Revision

Revision Number: 0.480 Revision Date: 01-20-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
37501 01050 Black Reel 50 ft 612825147244 C
37501 010500 Black Reel 500 ft 612825147251 C F
