39118

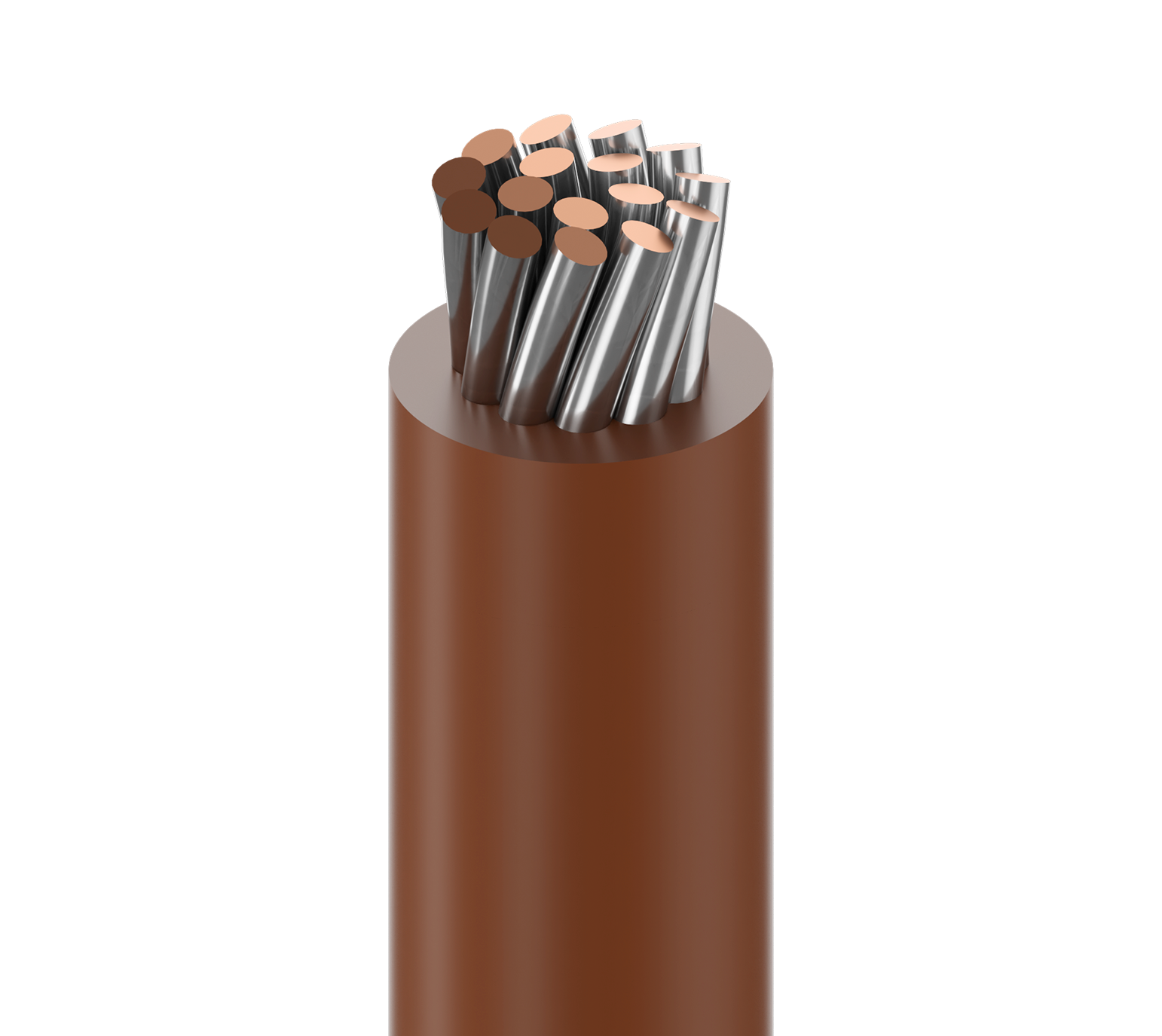

Lead Wire, #18 Str TC, PPO Ins, AWM 11028

...
Low Temp Plastic Lead Wire, 18AWG (16x30) Tinned Copper, PPO Insulation, AWM 11028 600V 105C VW-1
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

Electrical panel builders, Electrical/electronic manufacturers, Appliance manufacturers, Furniture, Computer manufacturers, Automotive companies and their sub-suppliers

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 1 18 AWG 16x30 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PPO - Polyphenylene Oxide 0.012 in (0.30 mm) 0.069 in (1.8 mm)

Overall Cable Diameter (Nominal)

0.069 in (1.8 mm)

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
6.5 Ohm/1000ft Single conductor in free air @ 30ºC: 20 A
Voltage
UL Voltage Rating
600 V RMS
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -40°C To +105°C Dry
Bend Radius
Stationary Min. Installation Min.
0.69 in (18 mm) 0.69 in (18 mm)

Max. Pull Tension

16 lbs (7.3 kg)

Bulk Cable Weight

6 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

VW-1

AWM Compliance

AWM 11028

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Product Notes

Notes

Halogen-free.

History

Update and Revision

Revision Number: 0.455 Revision Date: 06-30-2022

Part Numbers
Item # Color Putup Type Length UPC
39118 010100 Black Reel 100 ft 612825149446
39118 0101000 Black Reel 1,000 ft 612825149453
39118 0105000 Black Reel 5,000 ft 612825149460
39118 013100 Blue, Dark Reel 100 ft 612825149477
39118 0131000 Blue, Dark Reel 1,000 ft 612825149484
39118 0135000 Blue, Dark Reel 5,000 ft 612825149491
39118 001100 Brown Reel 100 ft 612825149200
39118 0011000 Brown Reel 1,000 ft 612825149217
39118 0015000 Brown Reel 5,000 ft 612825149224
39118 008100 Gray Reel 100 ft 612825149385
39118 0081000 Gray Reel 1,000 ft 612825149392
39118 0085000 Gray Reel 5,000 ft 612825149408
39118 005100 Green, Dark Reel 100 ft 612825149323
39118 0051000 Green, Dark Reel 1,000 ft 612825149330
39118 0055000 Green, Dark Reel 5,000 ft 612825149347
39118 189100 Green, Yellow Stripe Reel 100 ft 612825149507
39118 1891000 Green, Yellow Stripe Reel 1,000 ft 612825149514
39118 1895000 Green, Yellow Stripe Reel 5,000 ft 612825149521
39118 003100 Orange Reel 100 ft 612825149262
39118 0031000 Orange Reel 1,000 ft 612825149279
39118 0035000 Orange Reel 5,000 ft 612825149286
39118 002100 Red Reel 100 ft 612825149231
39118 0021000 Red Reel 1,000 ft 612825149248
39118 0025000 Red Reel 5,000 ft 612825149255
39118 007100 Violet Reel 100 ft 612825149354
39118 0071000 Violet Reel 1,000 ft 612825149361
39118 0075000 Violet Reel 5,000 ft 612825149378
39118 009100 White Reel 100 ft 612825149415
39118 0091000 White Reel 1,000 ft 612825149422
39118 0095000 White Reel 5,000 ft 612825149439
39118 004100 Yellow Reel 100 ft 612825149293
39118 0041000 Yellow Reel 1,000 ft 612825149309
39118 0045000 Yellow Reel 5,000 ft 612825149316
