8000

Antenna Wire, #14 Str BCCS

...

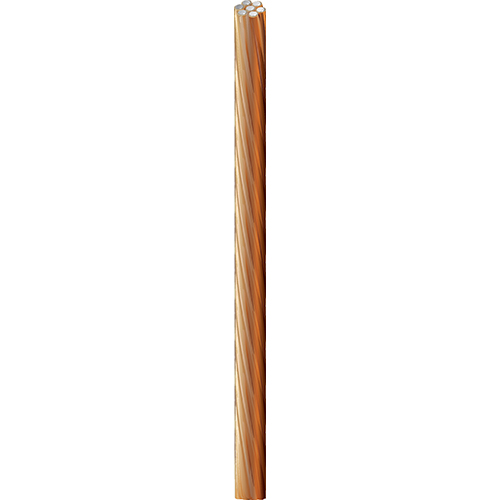

Antenna Wire, 14AWG (7x22) Bare Copper Covered Steel
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

antenna

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
14 7x22 BCCS - Bare Copper Covered Steel 1

Conductor Count

1

Mechanical Characteristics

Bulk Cable Weight

13.3 lbs/1000ft

Max. Pull Tension

180 lbs
Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

CA Prop 65

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

N/A

Plenum/Non-Plenum

Plenum (Y/N)

No

History

Update and Revision

Revision Number: 0.343 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
8000 000100 None Reel 100 ft 612825192633
8000 0001000 None Reel 1,000 ft 612825192640
