Product Number: 8021

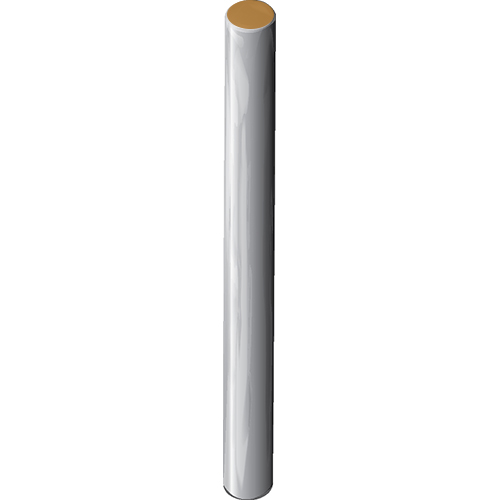

Bus Bar Wire, #22 Sol TC

Bus Bar Wire, 22AWG (Solid) Tinned Copper, QQ-W-343G

  • Availability:
    Global
  • Status:
    Active
8021
  • 8021
1 of 1

Specifications

Expand All

Suitable Applications

bus bar

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 1 22 AWG Solid TC - Tinned Copper

Overall Cable Diameter (Nominal)

0.025 in (0.64 mm)

Electricals

Nom. Conductor DCR Max. Current
16.3 Ohm/1000ft Single conductor in free air @ 30ºC: 18 A

Voltage

UL Voltage Rating
600 V RMS

Temperature

UL Temperature Operating
80°C -40°C To +80°C

Bend Radius

Stationary Min. Installation Min.
0.25 in (6.4 mm) 0.25 in (6.4 mm)

Max. Pull Tension

5 lbs (2.3 kg)

Bulk Cable Weight

2 lbs/1000ft

Environmental Suitability

Outdoor

Sustainability

CA Prop 65

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Update and Revision

Revision Number: 0.452 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.452 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length UPC
8021 000100 None Reel 100 ft 612825194347
8021 0001000 None Reel 1,000 ft 612825194354
