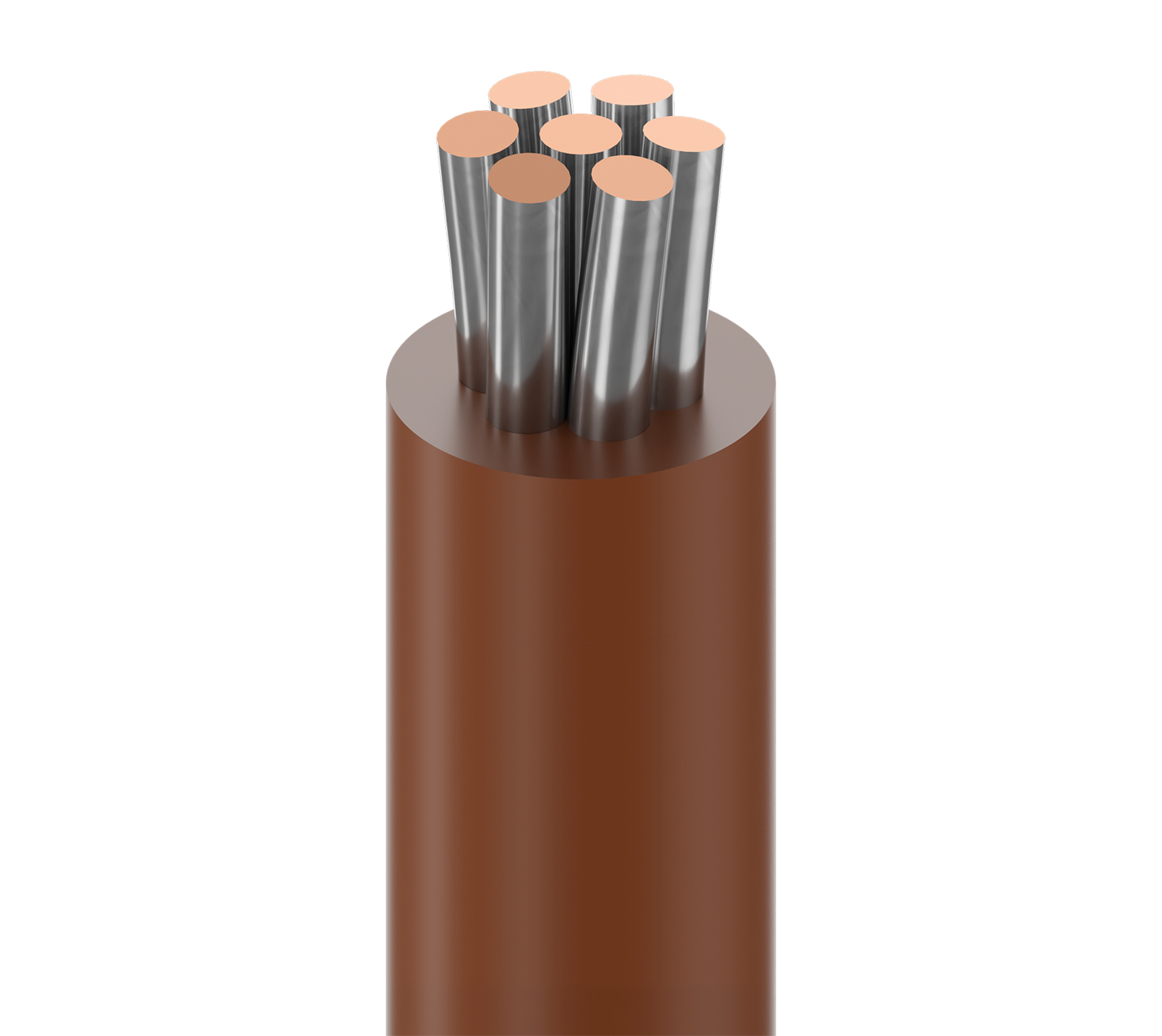

Lead Wire, #20 Str TC, PVC Ins, TYPE B MIL-W-16878/1
|
Suitable Applications |
inter-connection circuits, internal wiring of computer and electronic equipments, (Type B) MIL-W-16878/1-Low Temp applications |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 1 | 20 AWG | 7x28 | TC - Tinned Copper |
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.01 in (0.25 mm) | 0.058 in (1.5 mm) |
|
Overall Cable Diameter (Nominal) |
0.058 in (1.5 mm) |
|---|
| Nom. Conductor DCR | Max. Current |
|---|---|
| 9.8 Ohm/1000ft | Single conductor in free air @ 30ºC: 14.0 A |
| UL Voltage Rating |
|---|
| 600 V RMS |
| UL Temperature | Operating |
|---|---|
| 105°C | -40°C To +105°C |
| Stationary Min. | Installation Min. |
|---|---|
| 0.58 in (15 mm) | 0.58 in (15 mm) |
|
Max. Pull Tension |
11 lbs (5.0 kg) |
|---|---|
|
Bulk Cable Weight |
4 lbs/1000ft |
|
Environmental Suitability |
Outdoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Military Compliance |
MIL-W-16878/1 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
Update and Revision |
Revision Number: 0.484 Revision Date: 01-20-2023 |
|---|
