Product Number: 8520

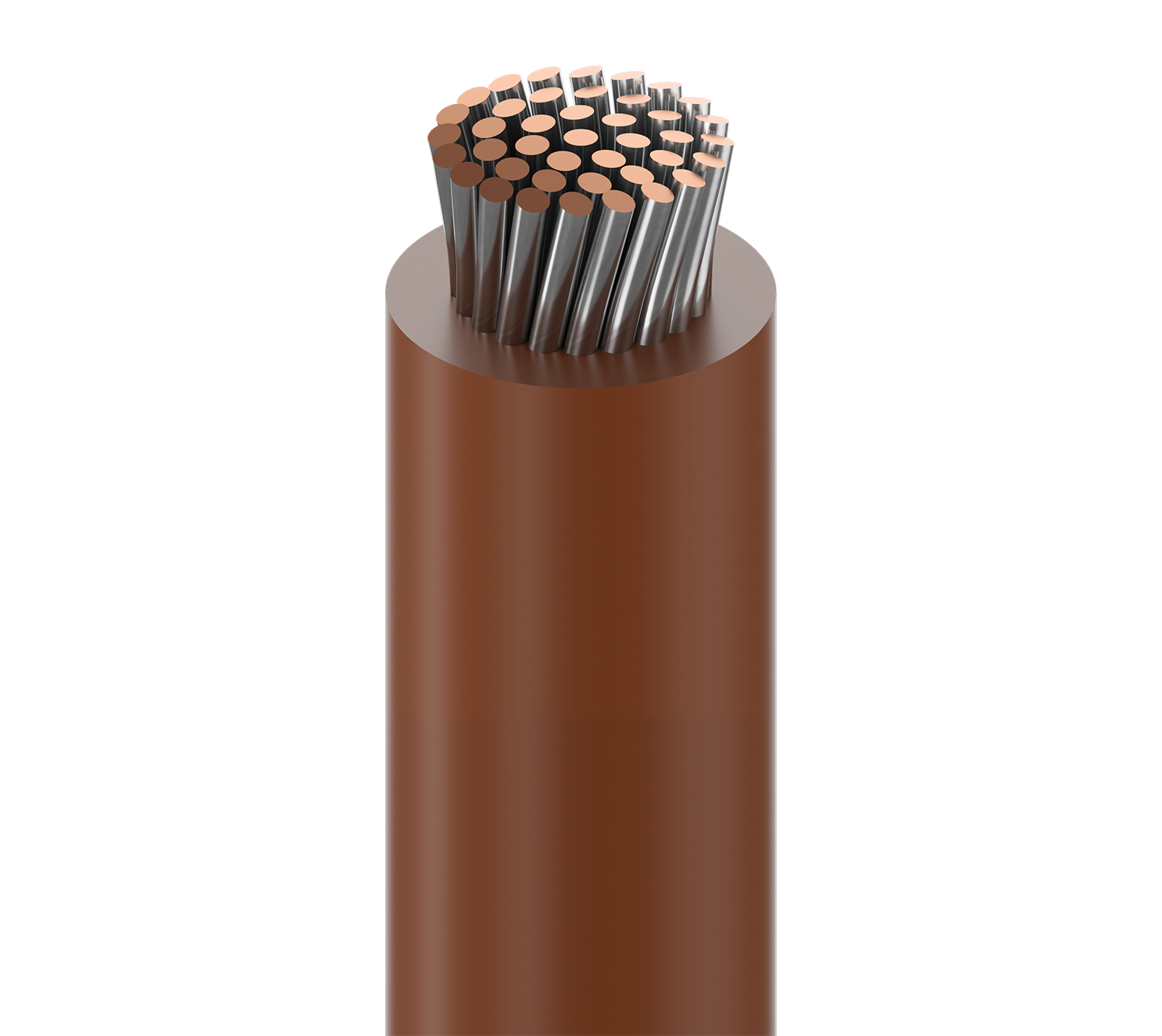

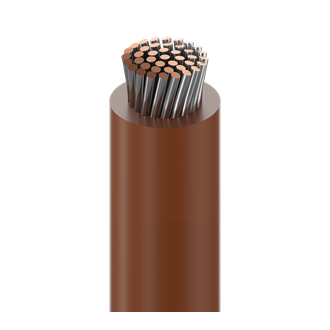

Lead Wire, #14 Str TC, PVC Ins, TYPE MW MIL-W-76C-PVC
Low Temp Plastic Lead Wire, 14AWG (41x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
inter-connection circuits, internal wiring of computer and electronic equipments, (Type MW) MIL-W-76C-Low Temp applications |
|---|
Construction Details
Conductor
| Size | Stranding | Material |
|---|---|---|
| 14 | 41x30 | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.019 in (0.48 mm) | 0.111 in (2.82 mm) |
|
Overall Cable Diameter (Nominal) |
0.111 in (2.82 mm) |
|---|
Electrical Characteristics
Voltage
| UL Voltage Rating |
|---|
| 1000 V RMS |
Mechanical Characteristics
|
Bulk Cable Weight |
16 lbs/1000ft (24 kg/km) |
|---|
Standards and Compliance
|
Sustainability |
CA Prop 65 |
|---|---|
|
Military Compliance |
MIL-W-76C Type MWP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
History
|
Update and Revision |
Revision Number: 0.397 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.397 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8520 010100 | Black | Reel | 100 ft | 612825210788 | |
| 8520 0101000 | Black | Reel | 1,000 ft | 612825210795 | P |
| 8520 013100 | Blue, Dark | Reel | 100 ft | 612825210801 | |
| 8520 006100 | Blue, Light | Reel | 100 ft | 612825210733 |
