Product Number: 8522

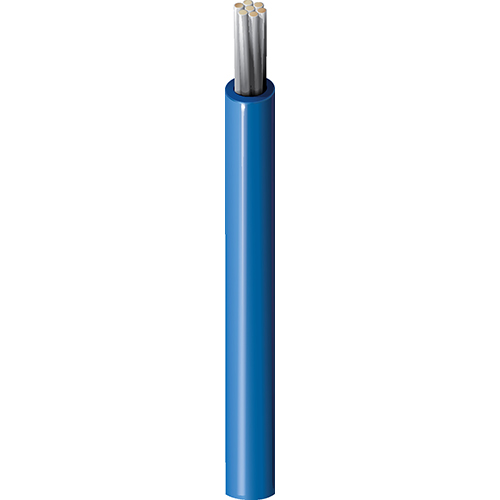

Lead Wire, #18 Str TC, PVC Ins, TYPE MW MIL-W-76C-PVC

Low Temp Plastic Lead Wire, 18AWG (16x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C

  • Availability:
    Global
  • Global inventory:
    Available
8522
  • 8522
1 of 1

Specifications

Report An Error

Suitable Applications

inter-connection circuits, internal wiring of computer and electronic equipments, (Type MW) MIL-W-76C-Low Temp applications

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 1 18 AWG 16x30 TC - Tinned Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter
PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.08 in (2.0 mm)

Overall Cable Diameter (Nominal)

0.08 in (2.0 mm)

Electricals

Nom. Conductor DCR Max. Current
6.5 Ohm/1000ft Single conductor in free air @ 30ºC: 16 A

Voltage

UL Voltage Rating
1000 V RMS

Temperature

UL Temperature Operating
80°C -40°C To +80°C

Bend Radius

Stationary Min. Installation Min.
0.8 in (20 mm) 0.8 in (20 mm)

Max. Pull Tension

19 lbs (8.6 kg)

Bulk Cable Weight

7 lbs/1000ft

Environmental Suitability

Outdoor

Sustainability

CA Prop 65

Military Compliance

MIL-W-76C Type MWP

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.480 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.480 Revision Date: 02-03-2025

Part Numbers

Item # Color Putup Type Length UPC Footnote
8522 010100 Black Reel 100 ft 612825211525
8522 0101000 Black Reel 1,000 ft 612825211532 P
8522 013100 Blue, Dark Reel 100 ft 612825211594
8522 0131000 Blue, Dark Reel 1,000 ft 612825211600 P
8522 006100 Blue, Light Reel 100 ft 612825211389
8522 0061000 Blue, Light Reel 1,000 ft 612825211396 P
8522 001100 Brown Reel 100 ft 612825211235
8522 0011000 Brown Reel 1,000 ft 612825211242 P
8522 008100 Gray Reel 100 ft 612825211433
8522 0081000 Gray Reel 1,000 ft 612825211440 P
8522 005100 Green, Dark Reel 100 ft 612825211358
8522 0051000 Green, Dark Reel 1,000 ft 612825211365 P
8522 003100 Orange Reel 100 ft 612825211303
8522 0031000 Orange Reel 1,000 ft 612825211310 P
8522 0121000 Pink Reel 1,000 ft 612825211556 P
8522 002100 Red Reel 100 ft 612825211273
8522 0021000 Red Reel 1,000 ft 612825347835 P
8522 0111000 Tan Reel 1,000 ft 612825211549 P
8522 007100 Violet Reel 100 ft 612825211419
8522 0071000 Violet Reel 1,000 ft 612825211426 P
8522 009100 White Reel 100 ft 612825211471
8522 0091000 White Reel 1,000 ft 612825211488 P
8522 0261000 White, Black And Blue Stripe Reel 1,000 ft A
8522 0301000 White, Black And Violet Stripe Reel 1,000 ft 612825211716 A
8522 014100 White, Black Stripe Reel 100 ft 612825211617 A
8522 0141000 White, Black Stripe Reel 1,000 ft 612825211624 A
8522 018100 White, Blue Stripe Reel 100 ft 612825211662 A
8522 0181000 White, Blue Stripe Reel 1,000 ft 612825211679 A
8522 0161000 White, Green Stripe Reel 1,000 ft A
8522 0201000 White, Orange Stripe Reel 1,000 ft 612825211709 A
8522 0151000 White, Red Stripe Reel 1,000 ft 612825211648 A
8522 004100 Yellow Reel 100 ft 612825211334
8522 0041000 Yellow Reel 1,000 ft 612825211341 P
