8661

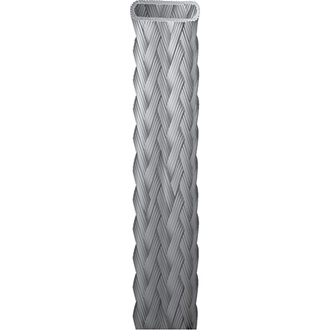

Shielding & Bonding, TC Braid #11.3AWG

...
Shielding & Bonding, TC Braid 11.3AWG (192x34)
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

for shielding and bonding cable

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Braid 1 12 AWG 192x34 TC - Tinned Copper
Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
1.35 Ohm/1000ft Single conductor in free air @ 30ºC: 46.0 A
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -40°C To +80°C

Max. Pull Tension

69 lbs (31 kg)

Bulk Cable Weight

26 lbs/1000ft

Standards and Compliance

Environmental Suitability

Outdoor

Sustainability

CA Prop 65

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Product Notes

Notes

AWG size is approximated.

History

Update and Revision

Revision Number: 0.453 Revision Date: 01-20-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
8661 00050 None Reel 50 ft 612825213901
8661 000250 None Reel 250 ft 612825213895 E
