Lead Wire, #22 Str TC, Conductive PO/PO Ins, PVC Jkt, 25kV

...

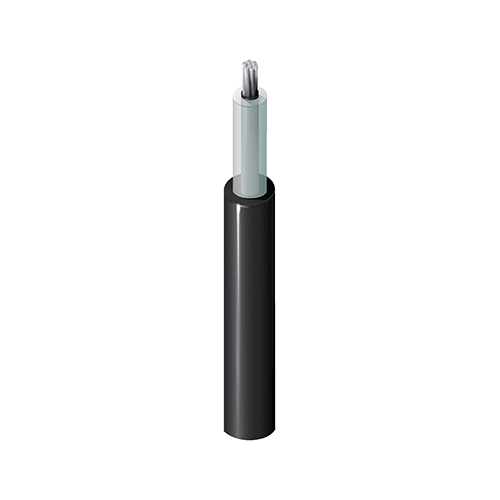

Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper, Conductive PO/PO Insulation, PVC Outer Jacket, 25kV
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

internal wiring of electronic equipments, high voltage applications

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
22 7x30 TC - Tinned Copper 1

Conductor Count

1

Insulation
Material Nominal Wall Thickness
PE - Polyethylene 0.044 in

Table Notes

.003 in. conductive polyethylene over stranding.

Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.15 in 0.015 in
0.15 in
Electrical Characteristics
Voltage
Breakdown Voltage Non-UL Description Non-UL Voltage Rating
48,000 V (DC) 24,000 V DC
AC (60 Hertz) 9000 V RMS
Temperature Range

Non-UL Temp Rating

80°C

Mechanical Characteristics

Bulk Cable Weight

10 lbs/1000ft

Min. Bend Radius/Minor Axis

2.25 in
Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

CA Prop 65

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

N/A

Plenum/Non-Plenum

Plenum (Y/N)

No

Product Notes

Notes

*This cable is recommended for applications in which the source is power limited so that if a cable failure occurs the source limits the energy transfer to a value of less than that required to raise the conductor temperature to 90°C.

History

Update and Revision

Revision Number: 0.386 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
8868 002500 Red Reel 500 ft 612825217138
8868 002U500 Red Reel 500 ft 612825217121
