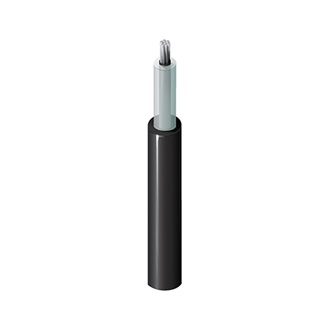

Lead Wire, #22 Str TC, Conductive PO/PO Ins, PVC Jkt, 17kV

...
Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper, Conductive PO/PO Insulation, PVC Outer Jacket, 17kV
English
Request Quote
Share
Request Sample Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

internal wiring of electronic equipments, high voltage applications

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 1 22 7x30 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PE - Polyethylene 0.027 in (0.69 mm) 0.090 in (2.3 mm)

Table Notes

.003 in. conductive polyethylene over stranding.

Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.12 in (3.0 mm)

Overall Cable Diameter (Nominal)

0.12 in (3.0 mm)

Electrical Characteristics
Voltage
Voltage Rating Breakdown Voltage
17,000 V DC, 6000 V RMS (AC (60 Hertz)) 35,000 V (DC)
Mechanical Characteristics
Bend Radius
Stationary Min. Installation Min.
0.48 in (12 mm) 0.48 in (12 mm)

Max. Pull Tension

9.1 lbs (4.1 kg)

Bulk Cable Weight

8 lbs/1000ft

Standards and Compliance

Sustainability

CA Prop 65

European Directive Compliance

EU Directive 2012/19/EU (WEEE)

History

Update and Revision

Revision Number: 0.426 Revision Date: 06-30-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
8869 010100 Black Reel 100 ft 612825217145
8869 010500 Black Reel 500 ft 612825217152
