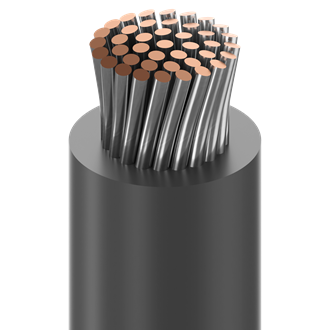

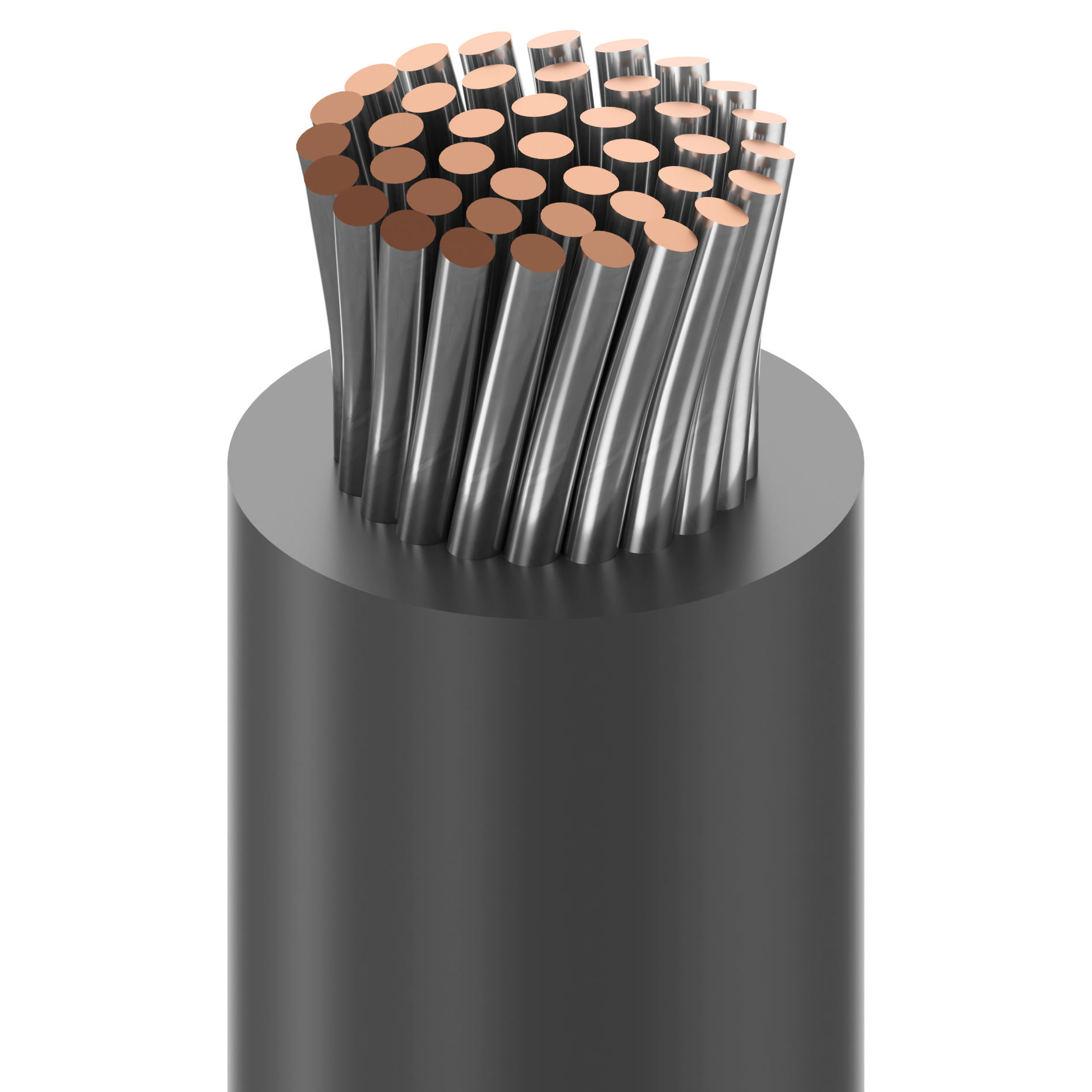

Lead Wire, #14 Str TC, PVC Ins, AWM 1015 AWM 1230
|
Suitable Applications |
inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 1 | 14 AWG | 41x30 | TC - Tinned Copper |
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.033 in (0.84 mm) | 0.138 in (3.51 mm) |
|
Overall Cable Diameter (Nominal) |
0.138 in (3.51 mm) |
|---|
| Nom. Conductor DCR | Max. Current |
|---|---|
| 2.7 Ohm/1000ft | Single conductor in free air @ 30ºC: 39 A |
| UL Voltage Rating |
|---|
| 600 V RMS |
| UL Temperature | Operating |
|---|---|
| 105°C | -30°C To +105°C |
| Stationary Min. | Installation Min. |
|---|---|
| 1.38 in (35.1 mm) | 1.38 in (35.1 mm) |
|
Max. Pull Tension |
51 lbs (23 kg) |
|---|---|
|
Bulk Cable Weight |
19 lbs/1000ft |
|
Environmental Suitability |
Indoor, Outdoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
VW-1 |
|
NEC / UL Compliance |
Article 310, MTW or TW |
|
AWM Compliance |
AWM 1015, AWM 1230, CSA AWM I A/B |
|
CEC / C(UL) Compliance |
TEW |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Update and Revision |
Revision Number: 0.498 Revision Date: 04-19-2023 |
|---|
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8916 010100 | Black | Reel | 100 ft | 612825218869 | |
| 8916 010500 | Black | Reel | 500 ft | 612825218883 | |
| 8916 0104000 | Black | Reel | 4,000 ft | 612825218876 | C |
| 8916 013100 | Blue, Dark | Reel | 100 ft | 612825218913 | |
| 8916 013500 | Blue, Dark | Reel | 500 ft | 612825218920 | |
| 8916 001100 | Brown | Reel | 100 ft | 612825218487 | |
| 8916 001500 | Brown | Reel | 500 ft | 612825218500 | |
| 8916 0014000 | Brown | Reel | 4,000 ft | 612825218494 | C P |
| 8916 008500 | Gray | Reel | 500 ft | 612825218739 | P |
| 8916 005100 | Green, Dark | Reel | 100 ft | 612825218692 | |
| 8916 005500 | Green, Dark | Reel | 500 ft | 612825218715 | |
| 8916 0054000 | Green, Dark | Reel | 4,000 ft | 612825218708 | C P |
| 8916 189100 | Green, Yellow Stripe | Reel | 100 ft | 612825347996 | A |
| 8916 189500 | Green, Yellow Stripe | Reel | 500 ft | 612825218968 | A |
| 8916 003100 | Orange | Reel | 100 ft | 612825218609 | |
| 8916 003500 | Orange | Reel | 500 ft | 612825218616 | |
| 8916 002100 | Red | Reel | 100 ft | 612825218555 | |
| 8916 002500 | Red | Reel | 500 ft | 612825218579 | |
| 8916 0024000 | Red | Reel | 4,000 ft | 612825218562 | C P |
| 8916 007500 | Violet | Reel | 500 ft | 612825218722 | P |
| 8916 009100 | White | Reel | 100 ft | 612825218784 | |
| 8916 009500 | White | Reel | 500 ft | 612825218791 | |
| 8916 004100 | Yellow | Reel | 100 ft | 612825218647 | |
| 8916 004500 | Yellow | Reel | 500 ft | 612825218654 |
