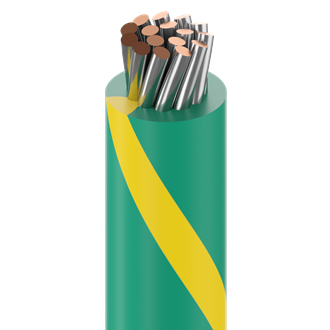

Lead Wire, #18 Str TC, PVC Ins, AWM 1015 AWM 1230
Suitable Applications |
inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire |
---|
Element | No. of Elements | Size | Stranding | Material |
---|---|---|---|---|
Conductor(s) | 1 | 18 AWG | 16x30 | TC - Tinned Copper |
Material | Nom. Thickness | Nom. Insulation Diameter |
---|---|---|
PVC - Polyvinyl Chloride | 0.033 in (0.84 mm) | 0.11 in (2.8 mm) |
Overall Cable Diameter (Nominal) |
0.11 in (2.8 mm) |
---|
Nom. Conductor DCR | Max. Current |
---|---|
6.5 Ohm/1000ft | Single conductor in free air @ 30ºC: 20 A |
UL Voltage Rating |
---|
600 V RMS |
UL Temperature | Operating |
---|---|
105°C | -30°C To +105°C |
Stationary Min. | Installation Min. |
---|---|
1.1 in (28 mm) | 1.1 in (28 mm) |
Max. Pull Tension |
27 lbs (12 kg) |
---|---|
Bulk Cable Weight |
10 lbs/1000ft |
Environmental Suitability |
Indoor, Outdoor |
---|---|
Sustainability |
CA Prop 65 |
Flammability / Reaction to Fire |
VW-1 |
NEC / UL Compliance |
Article 310, MTW |
AWM Compliance |
AWM 1015, AWM 1230, CSA AWM I A/B |
CEC / C(UL) Compliance |
TEW |
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Update and Revision |
Revision Number: 0.485 Revision Date: 04-19-2023 |
---|
