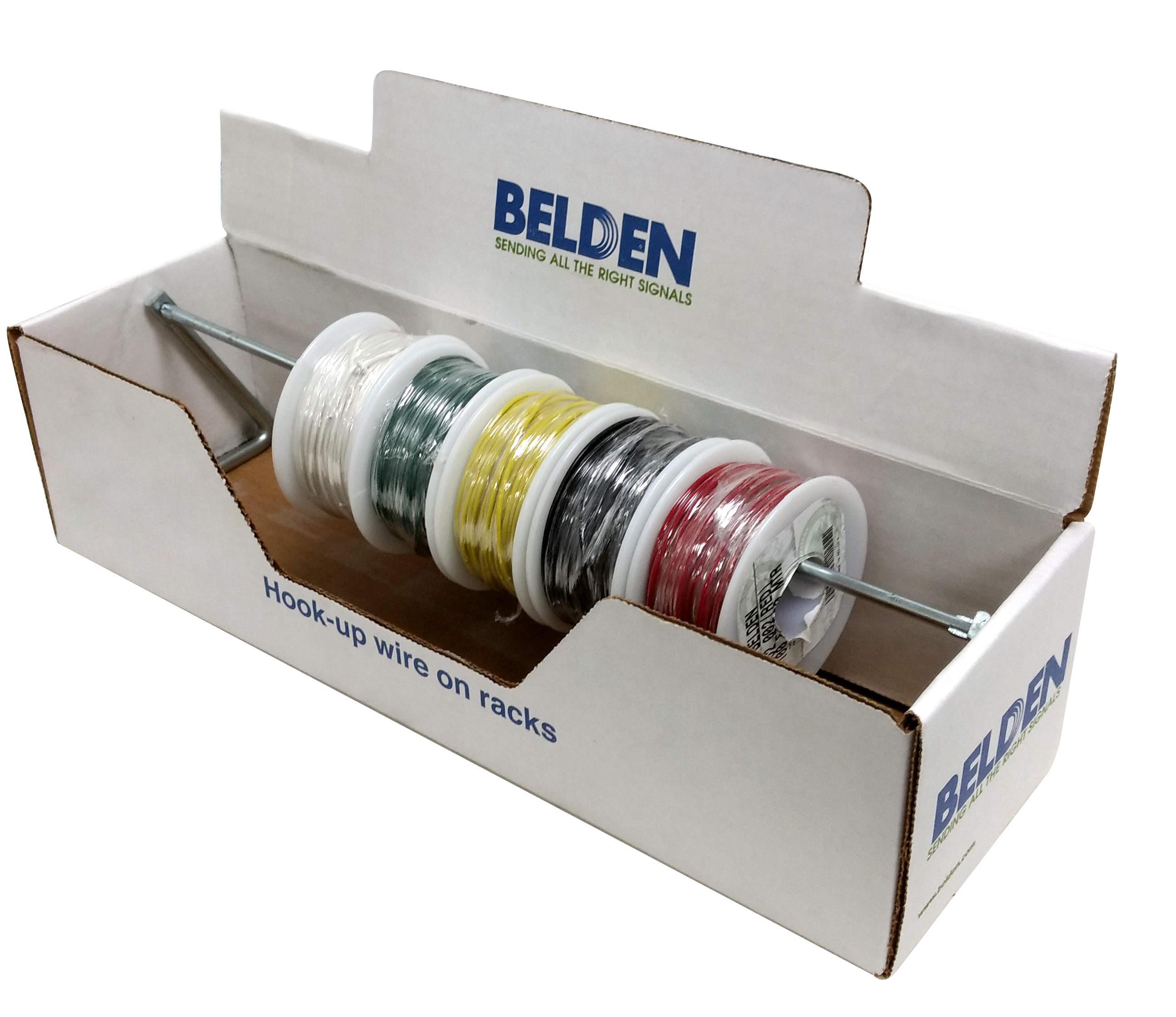

Lead Wire on Racks, 5 C #22 Str TC, PVC Ins, Five Color Kit

...
Low Temp Plastic Lead Wire on Racks, 5 Conductor 22AWG (7x30) Tinned Copper, PVC Insulation, Five Color Kit 80C
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances

Physical Characteristics (Overall)
Conductor
AWG Stranding Material
22 7x30 TC - Tinned Copper

Conductor Count

1

Insulation
Material
PVC - Polyvinyl Chloride
Temperature Range

UL Temp Rating

80°C

Mechanical Characteristics

Bulk Cable Weight

15 lbs/1000ft
Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

CA Prop 65

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

N/A

Product Notes

Notes

5 Spools of 8524 in the following colors 2, 5, 6, 9, 10 - Spool Lengths 100 Ft.

History

Update and Revision

Revision Number: 0.335 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Put-Up Type Length UPC
9531 Reel 1 ft 612825255017
