9899

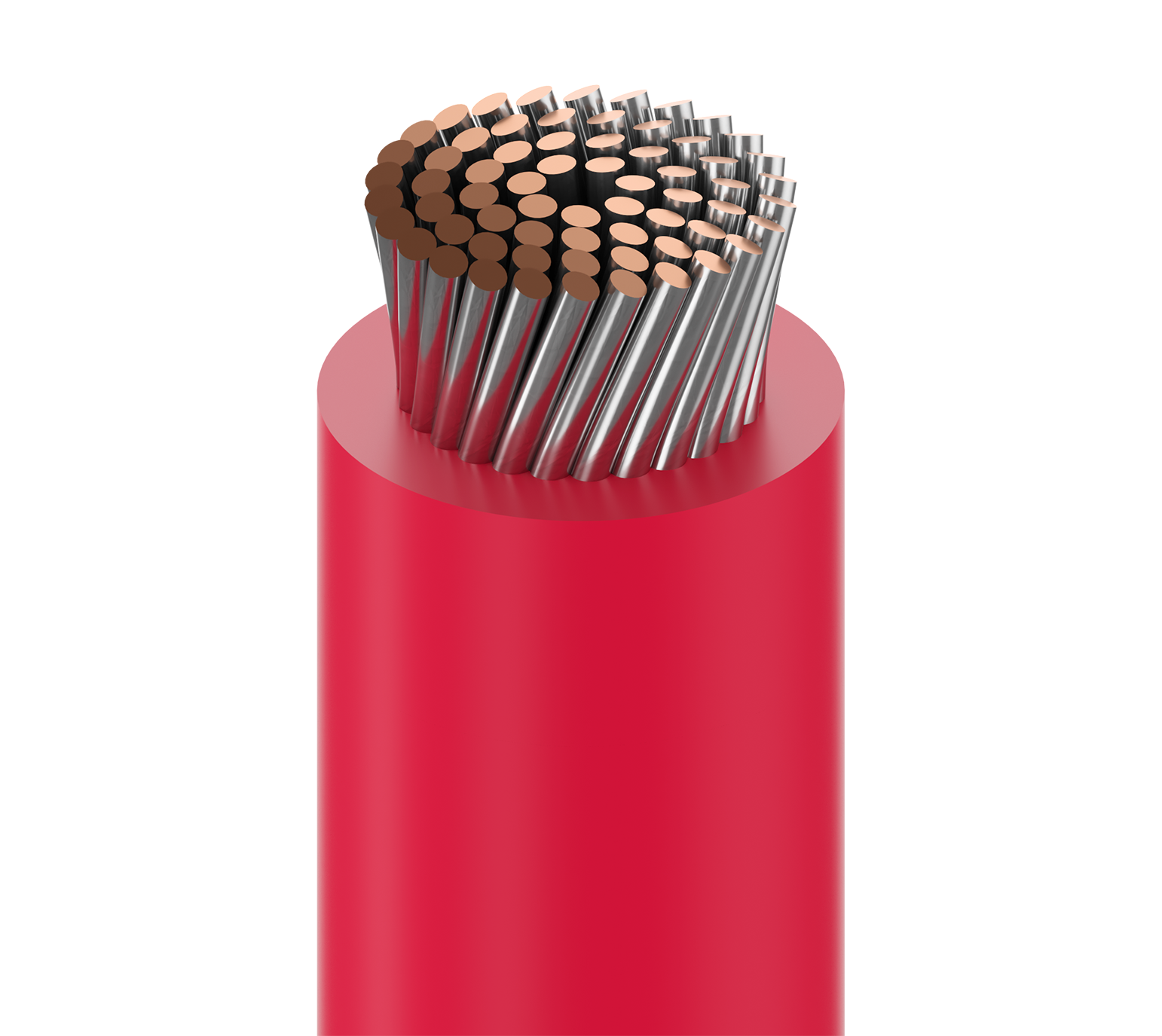

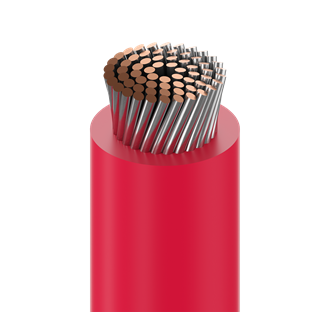

Lead Wire, #18 Str TC, PVC Ins, AWM 1855

...
Low Temp Plastic Lead Wire, 18AWG (65x36) Tinned Copper, PVC Insulation, AWM 1855 5000V 80C
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

used as test probe lead for electrical and electronic measuring for test equipment

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 1 18 AWG 65x36 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PVC - Polyvinyl Chloride 0.048 in (1.2 mm) 0.144 in (3.66 mm)

Overall Cable Diameter (Nominal)

0.144 in (3.66 mm)

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
6.5 Ohm/1000ft Single conductor in free air @ 30ºC: 6.5 A
Voltage
UL Voltage Rating
5000 V RMS
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -50°C To +80°C
Bend Radius
Stationary Min. Installation Min.
1.44 in (36.6 mm) 1.44 in (36.6 mm)

Max. Pull Tension

37 lbs (17 kg)

Bulk Cable Weight

14 lbs/1000ft

Standards and Compliance

Environmental Suitability

Outdoor

Sustainability

CA Prop 65

AWM Compliance

AWM 1855

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision

Revision Number: 0.447 Revision Date: 06-30-2022

Part Numbers
Item # Color Putup Type Length UPC
9899 010100 Black Reel 100 ft 612825260219
9899 010500 Black Reel 500 ft 612825260233
9899 0101000 Black Reel 1,000 ft 612825260226
9899 005500 Green, Dark Reel 500 ft 612825260196
9899 002100 Red Reel 100 ft 612825260165
9899 002500 Red Reel 500 ft 612825260189
9899 0021000 Red Reel 1,000 ft 612825260172
9899 009500 White Reel 500 ft 612825260202
