Lead Wire, #6 Str TC, PVC Ins, AWM 1283 AWM 1232 AWM 1015

...

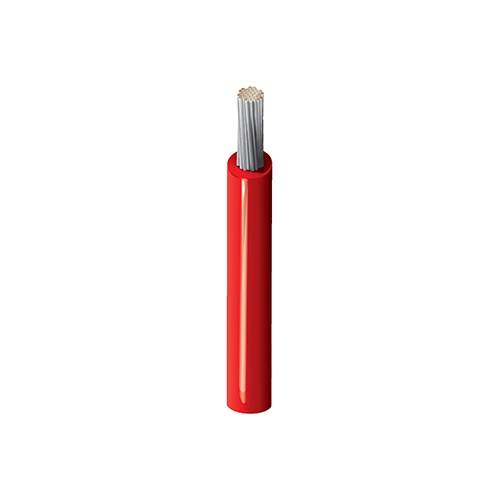

Low Temp Plastic Lead Wire, 6AWG (133x27) Tinned Copper, PVC Insulation, AWM 1283 AWM 1232 AWM 1015 CSA TYPE TEW 600V 105C
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 1 6 133x27 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PVC - Polyvinyl Chloride 0.063 in (1.6 mm) 0.331 in (8.41 mm)

Overall Cable Diameter (Nominal)

0.331 in (8.41 mm)

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
0.41 Ohm/1000ft Single conductor in free air @ 30ºC: 121 A
Voltage
UL Voltage Rating
600 V RMS
Mechanical Characteristics
Temperature
UL Temperature
105°C
Bend Radius
Stationary Min. Installation Min.
1.33 in (33.8 mm) 1.33 in (33.8 mm)

Max. Pull Tension

333 lbs (151 kg)

Bulk Cable Weight

117 lbs/1000ft

Standards and Compliance

Sustainability

CA Prop 65

Flammability / Reaction to Fire

VW-1

NEC / UL Compliance

Article 310, MTW or THW

AWM Compliance

AWM 1015, AWM 1232, AWM 1283, CSA AWM I A/B

CEC / C(UL) Compliance

TEW

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision

Revision Number: 0.439 Revision Date: 06-30-2022

Part Numbers
Item # Color Putup Type Length UPC
9906 010100 Black Reel 100 ft 612825260486
9906 0101000 Black Reel 1,000 ft 612825260493
9906 013100 Blue, Dark Reel 100 ft 612825260509
9906 001100 Brown Reel 100 ft 612825260363
9906 0011000 Brown Reel 1,000 ft 612825260370
9906 0081000 Gray Reel 1,000 ft 612825260455
9906 005100 Green, Dark Reel 100 ft 612825260431
9906 0051000 Green, Dark Reel 1,000 ft 612825260448
9906 002100 Red Reel 100 ft 612825260387
9906 0021000 Red Reel 1,000 ft 612825260394
9906 009100 White Reel 100 ft 612825260462
9906 0091000 White Reel 1,000 ft 612825260479
9906 004100 Yellow Reel 100 ft 612825260400
