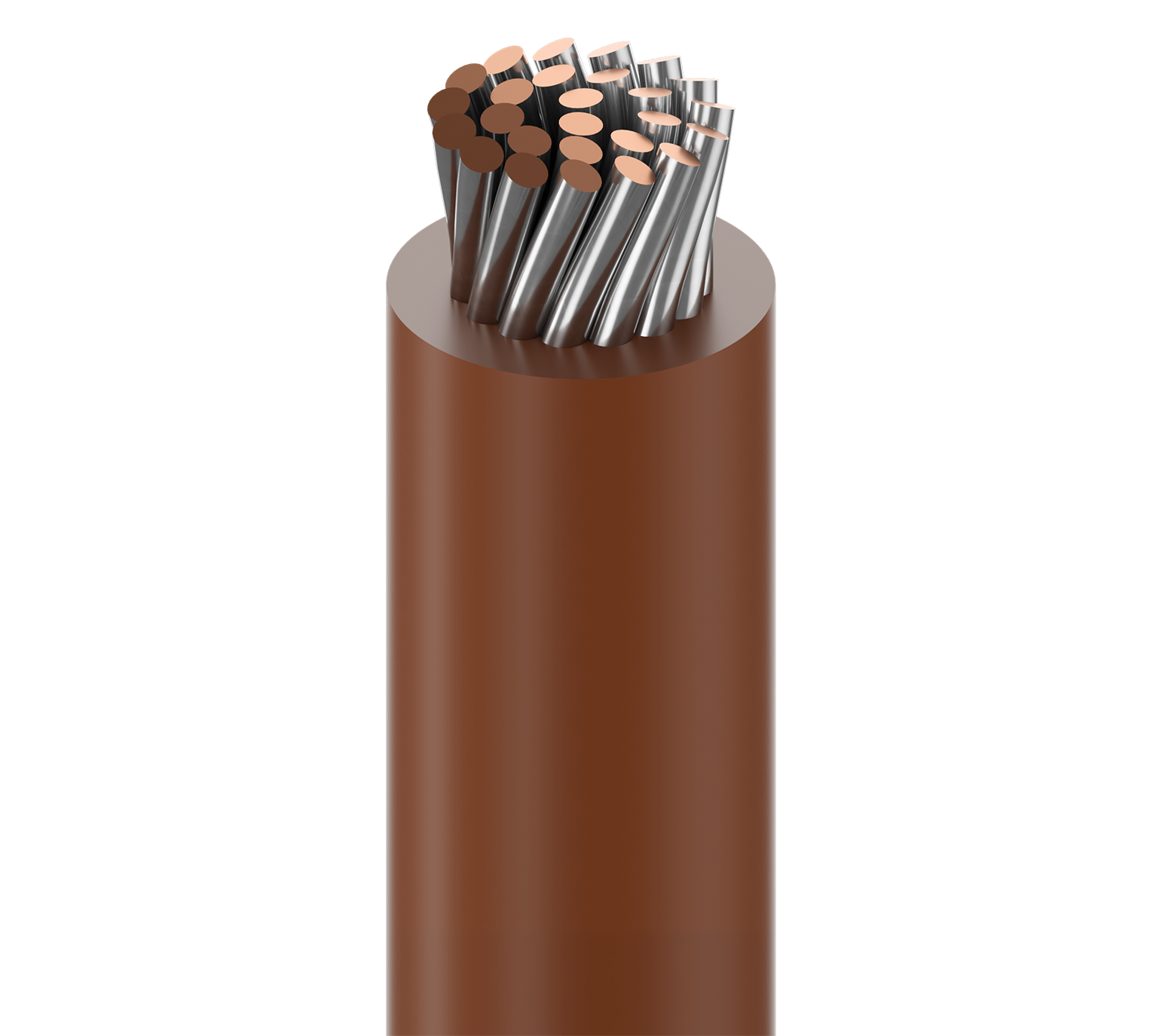

Lead Wire, #16 Str TC, PVC Ins, AWM 1007 AWM 1569

...
Low Temp Plastic Lead Wire, 16AWG (26x30) Tinned Copper, PVC Insulation, AWM 1007 AWM 1569 CSA TYPE TR-64 TRSR-64
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 16 AWG 26x30 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PVC - Polyvinyl Chloride 0.016 in (0.41 mm) 0.092 in (2.3 mm)

Overall Cable Diameter (Nominal)

0.092 in (2.3 mm)

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
4.44 Ohm/1000ft Single conductor in free air @ 30ºC: 28.8 A
Voltage
UL Voltage Rating
300 V RMS
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -25°C To +105°C
Bend Radius
Stationary Min. Installation Min.
0.92 in (23 mm) 0.92 in (23 mm)

Max. Pull Tension

35 lbs (16 kg)

Bulk Cable Weight

12 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

VW-1

AWM Compliance

AWM 1007, AWM 1569

CEC / C(UL) Compliance

TRSR-64

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision

Revision Number: 0.485 Revision Date: 01-20-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
9916 010100 Black Reel 100 ft 612825261988
9916 0101000 Black Reel 1,000 ft 612825261995 P
9916 0105000 Black Reel 5,000 ft 612825262008 P
9916 013100 Blue, Dark Reel 100 ft 612825262015
9916 0131000 Blue, Dark Reel 1,000 ft 612825262022 P
9916 001100 Brown Reel 100 ft 612825261797
9916 0011000 Brown Reel 1,000 ft 612825261803 P
9916 0081000 Gray Reel 1,000 ft 612825261933 P
9916 005100 Green, Dark Reel 100 ft 612825261896
9916 0051000 Green, Dark Reel 1,000 ft 612825261902 P
9916 0031000 Orange Reel 1,000 ft 612825261858 P
9916 002100 Red Reel 100 ft 612825261827
9916 0021000 Red Reel 1,000 ft 612825261834 P
9916 0025000 Red Reel 5,000 ft 612825261841 P
9916 007100 Violet Reel 100 ft 612825261919
9916 0071000 Violet Reel 1,000 ft 612825261926 P
9916 009100 White Reel 100 ft 612825261940
9916 0091000 White Reel 1,000 ft 612825261957 P
9916 0095000 White Reel 5,000 ft 612825261964 P
9916 004100 Yellow Reel 100 ft 612825261865
9916 0041000 Yellow Reel 1,000 ft 612825261872 P
