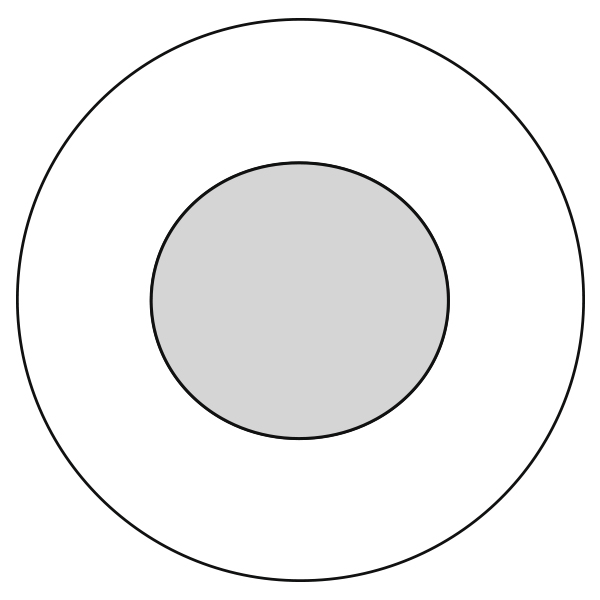

BE41138

Lead Wire, 0.4 mm BC, PVC Ins

...
0.4B PVC IEC 189/3 70C
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

IEC 189-3, VMD 70C rated 300/500V

Physical Characteristics (Overall)
Conductor
Stranding Material Nominal Diameter
Solid BC - Bare Copper 0.4 mm

Conductor Count

1

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness Nominal Wall Thickness
Insulation PVC - Polyvinyl Chloride 0.82 mm 0.05 mm 0.15 mm 0.2 mm
Electrical Characteristics
Conductor DCR
Element Max. Conductor DCR
Conductor(s) 144 Ohm/km
Voltage
Voltage Rating [V]
300 V
Standards

UL AWM Style Compliance

N/A

Military Compliance

N/A

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU CE Mark

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

N/A

History

Update and Revision

Revision Number: 0.153 Revision Date: 03-06-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
BE41138.0310K Blue Reel 10,000 m 8719605024770
BE41138.0210K Gray Reel 10,000 m 8719605024763
BE41138.0110K Red Reel 10,000 m 8719605024756
BE41138.0010K Yellow Reel 10,000 m 8719605024749
