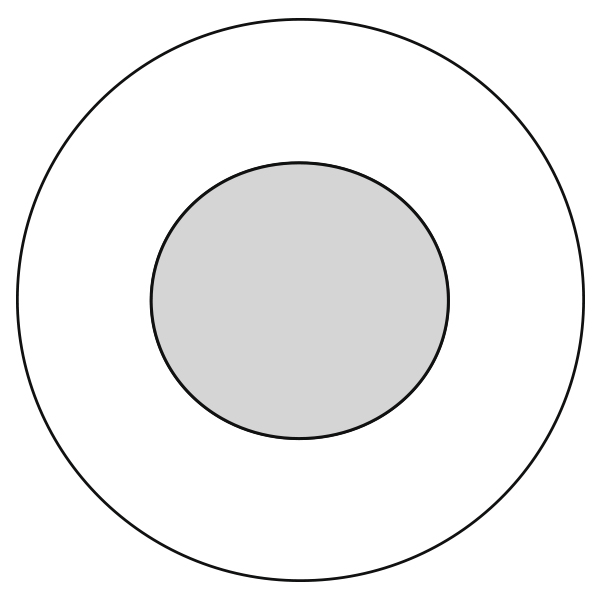

BE41230

Lead Wire, 0.2mm² Str BC, PVC Ins, 70°C

...
7x0.2B PVC VDMS 70C
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

IEC 189-3, VMDS 70C

Physical Characteristics (Overall)
Conductor
Stranding Material Cross Section Construction n x D
Stranded BC - Bare Copper 0.2 mm² 7x0.20 mm

Conductor Count

1

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness
Insulation PVC - Polyvinyl Chloride 1.7 mm 0.08 mm 0.4 mm
Electrical Characteristics
Conductor DCR
Element Max. Conductor DCR
Conductor(s) 87.2 Ohm/km

Min Insulation Resistance

10 MOhm*km

Standards

UL AWM Style Compliance

N/A

Military Compliance

N/A

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU CE Mark

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

N/A

History

Update and Revision

Revision Number: 0.149 Revision Date: 04-08-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
BE41230.002400 Black Reel 2,400 m 8719605025135
BE41230.005000 Black Reel 5,000 m 8719605025142
BE41230.092400 Blue Reel 2,400 m 8719605025234
BE41230.042400 Brown Reel 2,400 m 8719605025180
BE41230.082400 Gray Reel 2,400 m 8719605025227
BE41230.052400 Green Reel 2,400 m 8719605025197
BE41230.062400 Orange Reel 2,400 m 8719605025203
BE41230.072400 Red Reel 2,400 m 8719605025210
BE41230.032400 Violet Reel 2,400 m 8719605025173
BE41230.012400 White Reel 2,400 m 8719605025159
BE41230.022400 Yellow Reel 2,400 m 8719605025166
