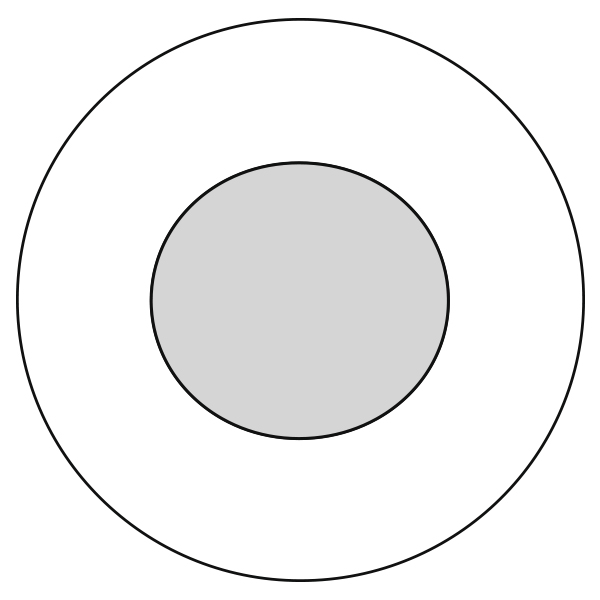

BE41231

Lead Wire, 0.44mm² Str BC, PVC Ins, 70°C

...
14x0.2B PVC 70C
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

IEC 189-3 Equipment wire 70C

Physical Characteristics (Overall)
Conductor
Stranding Material Cross Section Construction n x D
Stranded BC - Bare Copper 0.44 mm² 14x0.20 mm

Conductor Count

1

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness
Insulation PVC - Polyvinyl Chloride 2.05 mm 0.08 mm 0.4 mm
Electrical Characteristics
Conductor DCR
Element Max. Conductor DCR
Conductor(s) 45 Ohm/km

Min Insulation Resistance

10 MOhm*km

Temperature Range

Operating Temp Range (Flexible Install)

-25°C To +70°C

Standards

UL AWM Style Compliance

N/A

Military Compliance

N/A

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU CE Mark

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

N/A

History

Update and Revision

Revision Number: 0.139 Revision Date: 04-08-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
BE41231.003000 Black Reel 3,000 m 8719605025241
BE41231.103000 Blue Reel 3,000 m 8719605025333
BE41231.063000 Brown Reel 3,000 m 8719605025302
BE41231.093000 Gray Reel 3,000 m 8719605025326
BE41231.083000 Red Reel 3,000 m 8719605025319
BE41231.053000 Violet Reel 3,000 m 8719605025296
BE41231.033000 White Reel 3,000 m 8719605025272
BE41231.013000 White, Green Ring Reel 3,000 m 8719605025258
BE41231.023000 White, Red Ring Reel 3,000 m 8719605025265
BE41231.043000 Yellow Reel 3,000 m 8719605025289
BE41231.163000 Yellow, Green Ring Reel 3,000 m 8719605025340
