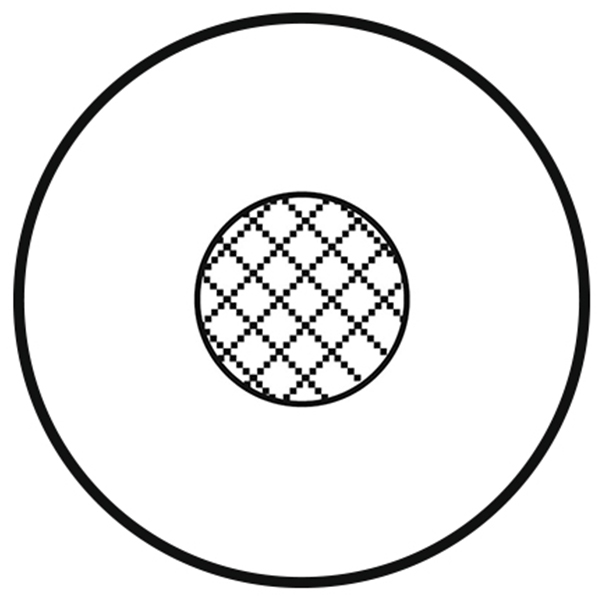

BE41508

Lead Wire, #8 Str BC, PVC Ins, AWM 1017

...
UL AWM ST1017 VW1 8AWG/168X30B CSA TEW FT1
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

UL Appliance Wiring Material Subject 758 Style 1017, 80C, 600 Vac.; CSA Type TEW, FT1

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Construction n x D
8 Stranded BC - Bare Copper 168x0.254 mm

Conductor Count

1

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness Nominal Wall Thickness
Insulation PVC - Polyvinyl Chloride 6.7 mm 0.1 mm 1.01 mm 1.14 mm
Electrical Characteristics
Conductor DCR
Element Max. Conductor DCR
Conductor(s) 2.06 Ohm/km

Min Insulation Resistance

0.762 MOhm*km

Voltage
UL Voltage Rating
600 V
Temperature Range

UL Temp Rating

80°C

Standards

UL AWM Style Compliance

AWM 1017

Military Compliance

N/A

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU CE Mark

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

VW-1

CSA Flammability

FT1

UL voltage rating

600 V RMS

History

Update and Revision

Revision Number: 0.167 Revision Date: 11-21-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
BE41508.00300 Black Reel 300 m 8719605026170
BE41508.001500 Black Reel 1,500 m 8719605026163
BE41508.05300 Blue Reel 300 m 8719605026279
BE41508.051500 Blue Reel 1,500 m 8719605026262
BE41508.031500 Brown Reel 1,500 m 8719605026224
BE41508.04300 Red Reel 300 m 8719605026255
BE41508.041500 Red Reel 1,500 m 8719605026248
BE41508.02300 Violet Reel 300 m 8719605026217
BE41508.021500 Violet Reel 1,500 m 8719605026200
BE41508.01300 Yellow, Green Ring Reel 300 m 8719605026194
BE41508.011500 Yellow, Green Ring Reel 1,500 m 8719605026187
